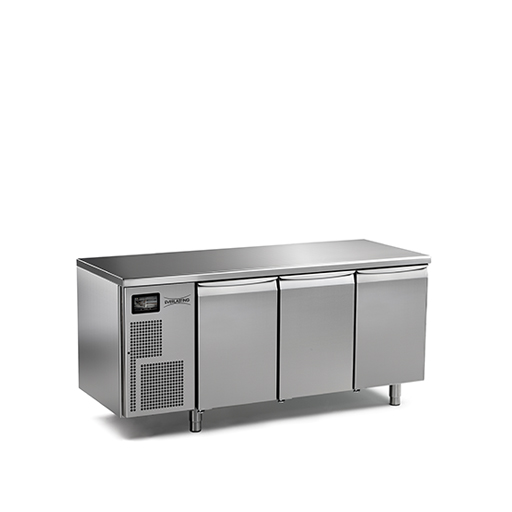

Baking Tab FL 198 REM
Overview
EN 60x40
TEMP: -5°C +40°C
H.R.: 55% - 95%
GAS: R452A
Dimensions WITHOUT WORKING TOP S: L 1984 x P 750 x H 810 mm

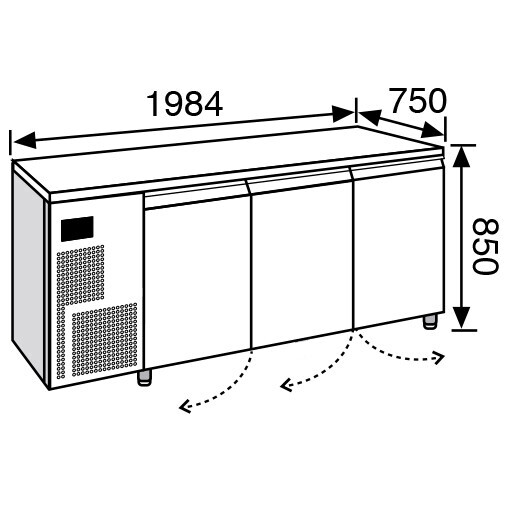

Dimensions WITH WORKING TOP P: L 1984 x P 750 x H 850 mm
Dimensions WITH SPLASHBACK A: L 1984 x P 750 x H 950 mm
Request offer/info for Baking Tab FL 198 REM
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
FL REM S
Technical data:
| Code | TDM130 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 810 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | R452A |
FL REM P
Technical data:
| Code | TDM131 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 850 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | R452A |
FL REM A
Technical data:
| Code | TDM132 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 950 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | R452A |
FL REM S CO2
Technical data:
| Code | TDM430 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 810 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | CO2 |
FL REM P CO2
Technical data:
| Code | TDM431 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 850 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | CO2 |
FL REM A CO2
Technical data:
| Code | TDM432 |
| Temperature °C | -5° +40°C |
| H.R. | 55% - 95% |
| Capacity Kg. | 30 |
| Dimensions | L 1984 x P 750 x H 950 mm |
| Dimensions Packed | L 2045 x P 810 x H 1110 mm |
| Trays capacity (40x60 cm) Nr° | 18 |
| Capacity containers (40x60x7h cm) Nr° | 18 |
| Weight N / G Kg. | 126 / 135 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 936 W |
| Absorbed power | 750 W / 3,9 A |
| Gas | CO2 |
Standard equipment

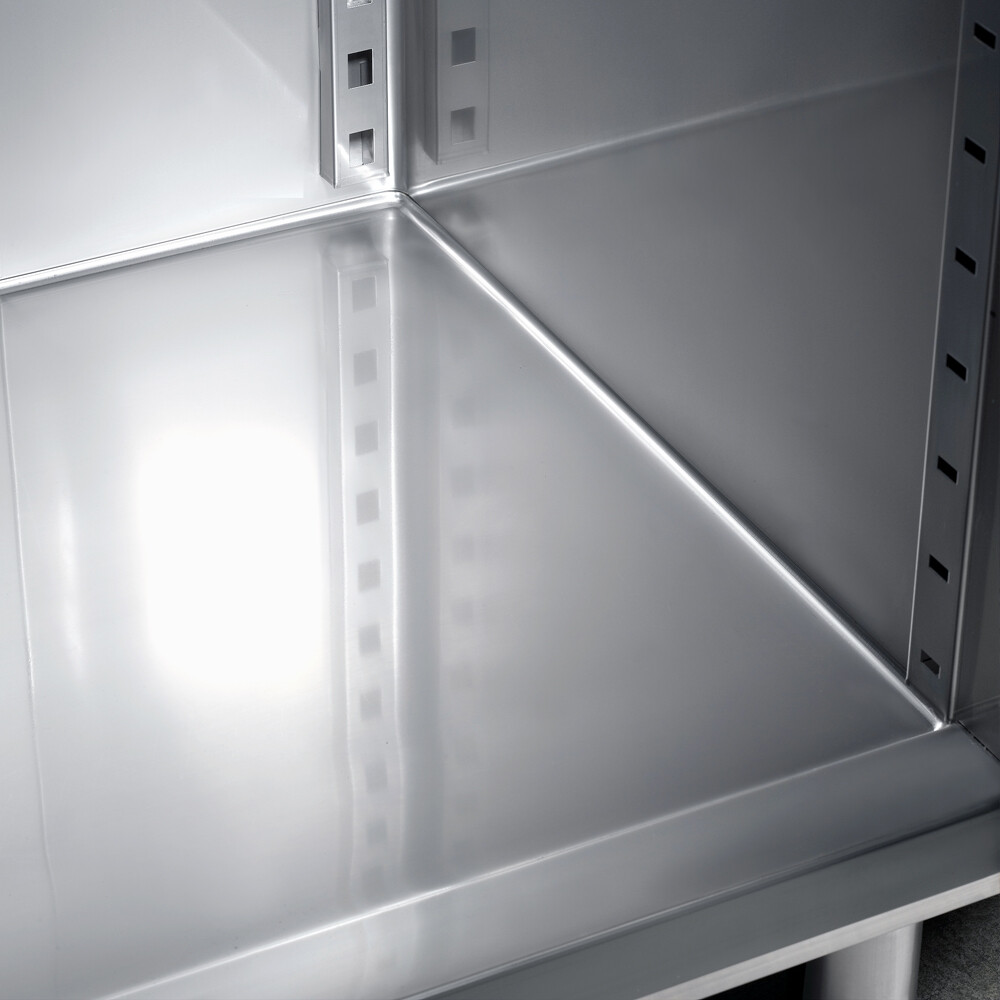

nr 6 pairs of “L”-shaped stainless steel slideways per door
Optional accessories
-
Germicidal UVC lamp
-
Wheels
-
N.B.: For the complete list of accessories see the price list
