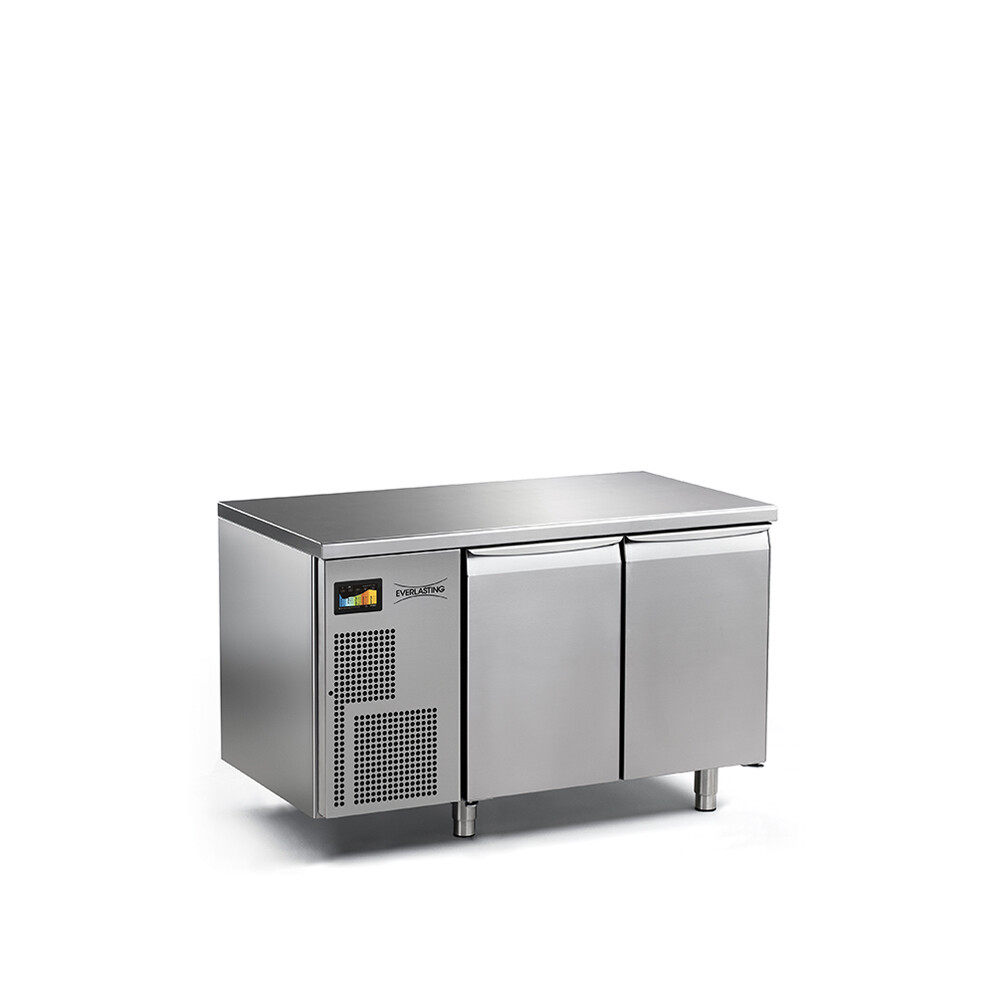

Baking Tab FB 145
Overview
EN 60x40
TEMP: -5°C +40°C
GAS: R452A
Dimensions WITHOUT WORKING TOP S: L 1456 x P 750 x H 810 mm

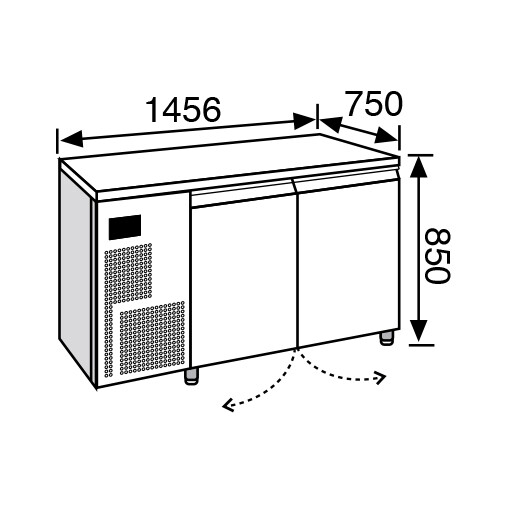

Dimensions WITH WORKING TOP P: L 1456 x P 750 x H 850 mm
Dimensions WITH SPLASHBACK A: L 1456 x P 750 x H 950 mm
Request offer/info for Baking Tab FB 145
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
FB S
Technical data:
| Code | TEK020 |
| Temperature °C | -5° +40°C |
| Capacity Kg. | 40 |
| Dimensions | L 1456 x P 750 x H 810 mm |
| Dimensions Packed | L 1516 x P 810 x H 1110 mm |
| Capacity containers (40x60x27h cm) Nr° | 4 |
| Weight N / G Kg. | 140 / 149 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 470 W / 2,6 A |
| Gas | R452A |
FB P
Technical data:
| Code | TEK021 |
| Temperature °C | -5° +40°C |
| Capacity Kg. | 40 |
| Dimensions | L 1456 x P 750 x H 850 mm |
| Dimensions Packed | L 1516 x P 810 x H 1110 mm |
| Capacity containers (40x60x27h cm) Nr° | 4 |
| Weight N / G Kg. | 140 / 149 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 470 W / 2,6 A |
| Gas | R452A |
FB A
Technical data:
| Code | TEK022 |
| Temperature °C | -5° +40°C |
| Capacity Kg. | 40 |
| Dimensions | L 1456 x P 750 x H 950 mm |
| Dimensions Packed | L 1516 x P 810 x H 1110 mm |
| Capacity containers (40x60x27h cm) Nr° | 4 |
| Weight N / G Kg. | 140 / 149 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 470 W / 2,6 A |
| Gas | R452A |
Standard equipment

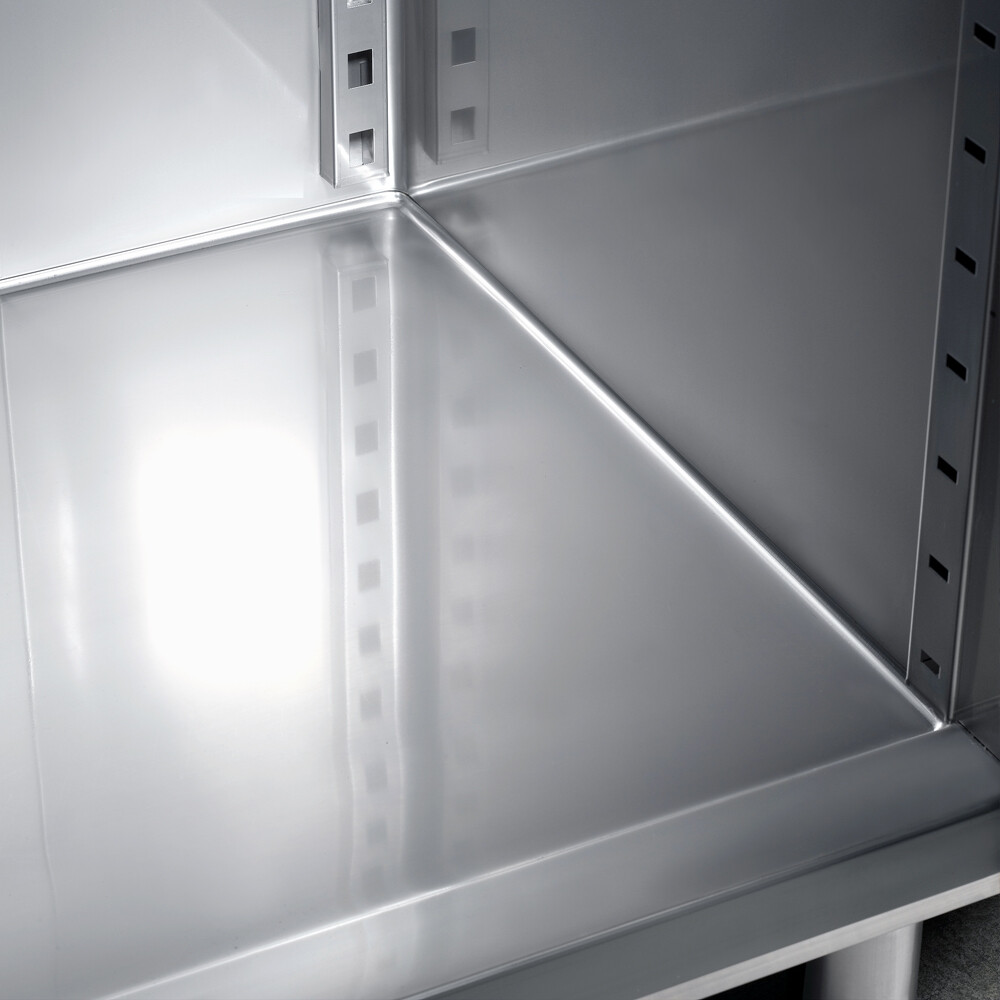

nr 1 pair of “L”-shaped stainless steel slideways with nr 1 plastic-coated wire shelf per door
Optional accessories
-
Germicidal UVC lamp
-
Wheels
-
N.B.: For the complete list of accessories see the price list
