Overview

GN 1/1 - GN 2/1 - EN 60x40 - EN 60x80

Gas: R452A

Chilling +90°C / +3°C: L 630 kg. - P 840 kg.

Freezing +90°C / -18°C: L 480 kg. - P 660 kg.

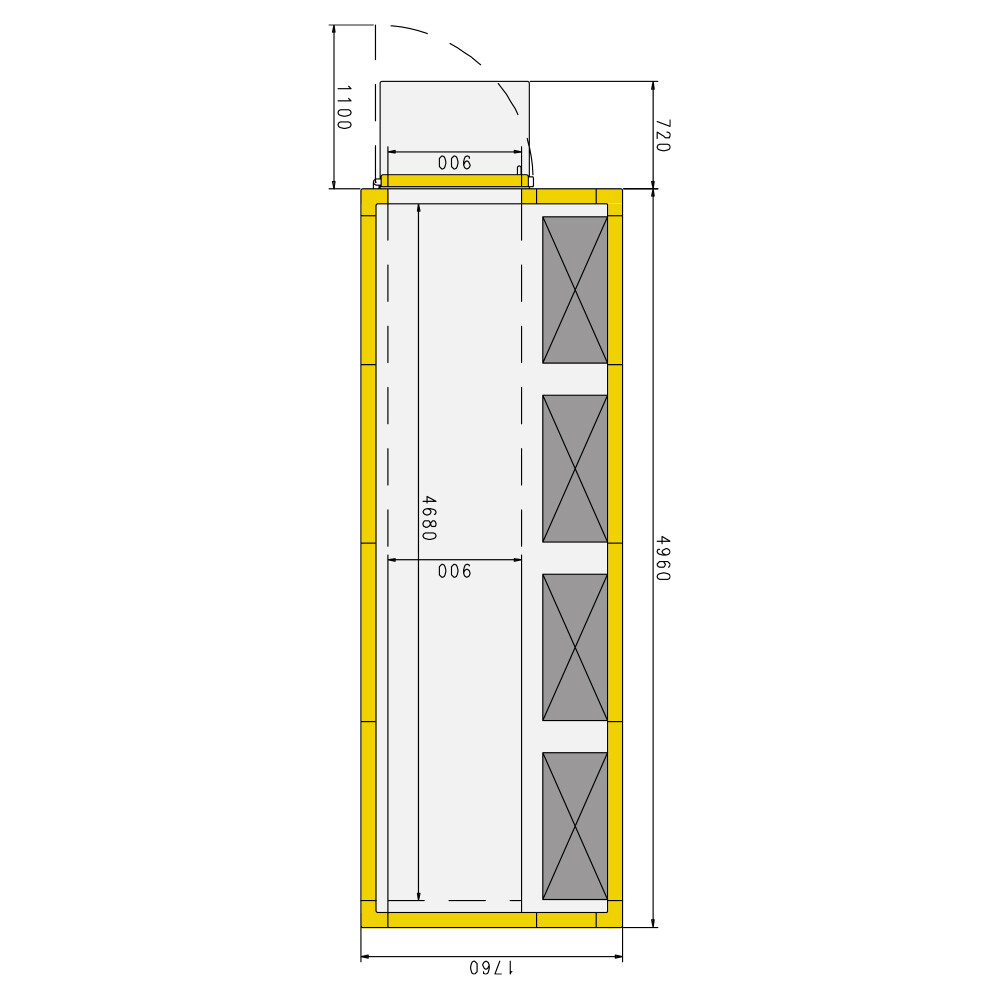

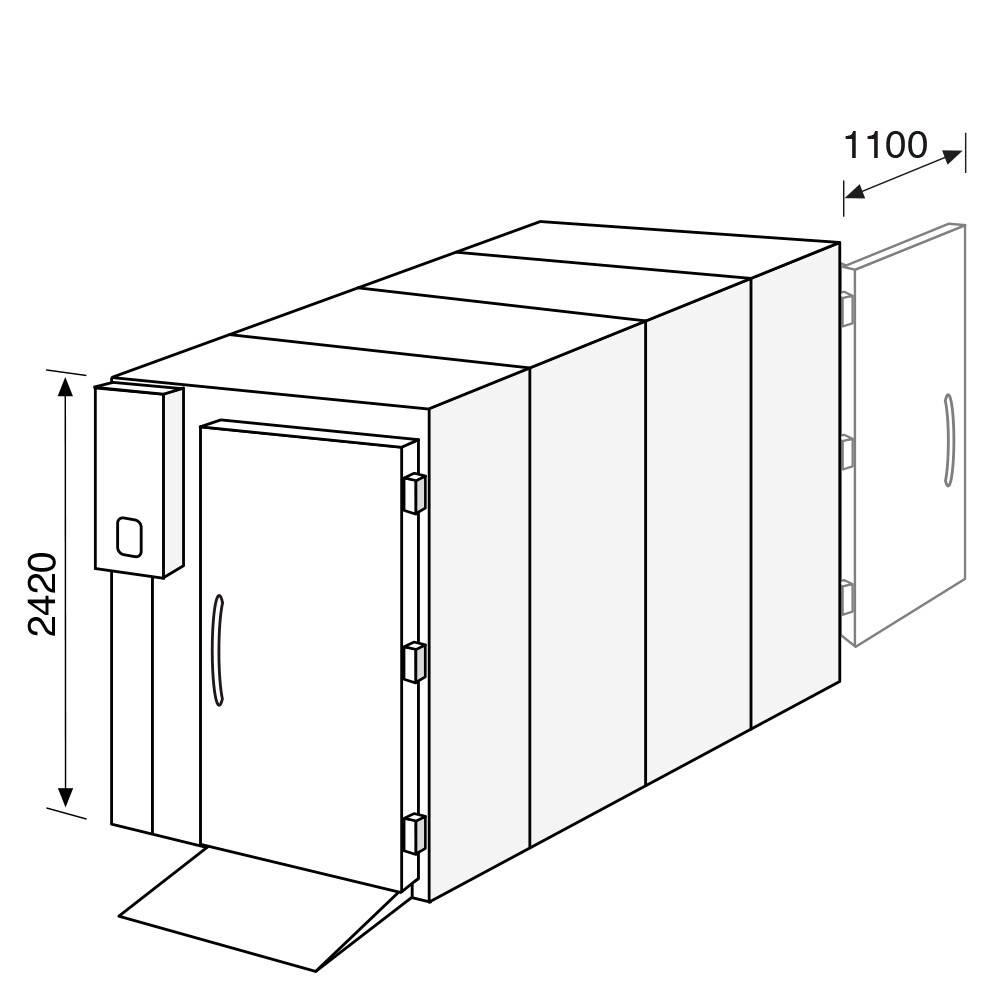

Dimensions Mod. 1P: L 1760 x P 5115 x H 2420 mm

Dimensions Mod. 2P: L 1760 x P 5270 x H 2420 mm

Door net passage: L 900 x H 2000 mm

KING TROLLEY 160A.1.90 L - 160A.2.90 L

Technical data:

Code KING TROLLEY 160A.1.90 L BDE010
Code KING TROLLEY 160A.2.90 L BDE110
Output-Blast chilling +90°C / +3°C  630
Output-Shock freezing +90°C / -18°C  480
Dimensions KING TROLLEY 160A.1.90 L L 1760 x P 5115 x H 2420 mm
Dimensions KING TROLLEY 160A.2.90 L L 1760 x P 5270 x H 2420 mm
Dimensions Packed L 2680 x P 1760 x H 2130 mm Nr°4
Trolley capacity (Not included) 16x20 GN 1/1
  7x20 GN 2/1
  14x20 EN 60x40
  7x20 EN 60x80
Blast chiller weight Kg. - Net/Gross 1 P 1289 / 1646
  2 P 1334 / 1691
Remote condensing unit weight Kg. - Net/Gross 836 / 1073
Voltage 400V - 3N Ph - 50Hz
Refrig. power - Evap. -25°C / Cond. 55°C 29100 W
Absorbed power 32 Kw / 58 A
Compressor 30 Hp
Gas R452A

KING TROLLEY 160A.1.90 P - 160A.2.90 P

Technical data:

Code KING TROLLEY 160A.1.90 P BEE010
Code KING TROLLEY 160A.2.90 P BEE110
Output-Blast chilling +90°C / +3°C  840
Output-Shock freezing +90°C / -18°C  660
Dimensions KING TROLLEY 160A.1.90 P L 1760 x P 5115 x H 2420 mm
Dimensions KING TROLLEY 160A.2.90 P L 1760 x P 5270 x H 2420 mm
Dimensions Packed L 2680 x P 1760 x H 2130 mm Nr°4
Trolley capacity (Not included) 16x20 GN 1/1
  7x20 GN 2/1
  14x20 EN 60x40
  7x20 EN 60x80
Blast chiller weight Kg. - Net/Gross 1 P 1321 / 1678
  2 P 1366 / 1723
Remote condensing unit weight Kg. - Net/Gross 836 / 1073
Voltage 400V - 3N Ph - 50Hz
Refrig. power - Evap. -25°C / Cond. 55°C 39329 W
Absorbed power 35 Kw / 63 A
Compressor 40 Hp
Gas R452A

Standard equipment

Blast chillers are supplied already assembled in parts / possibility of delivering the items disassembled on request

The remote condensing unit is supplied in positive nitrogen pressure (maximum distance 15 mt.)

Blast chillers are packed in wooden crates

Condensing units are packed on pallets with cardboard protections

Optional accessories

  • Germicidal UVC lamp
  • Trolleys
  • N.B.: For the complete list of accessories see the price list
