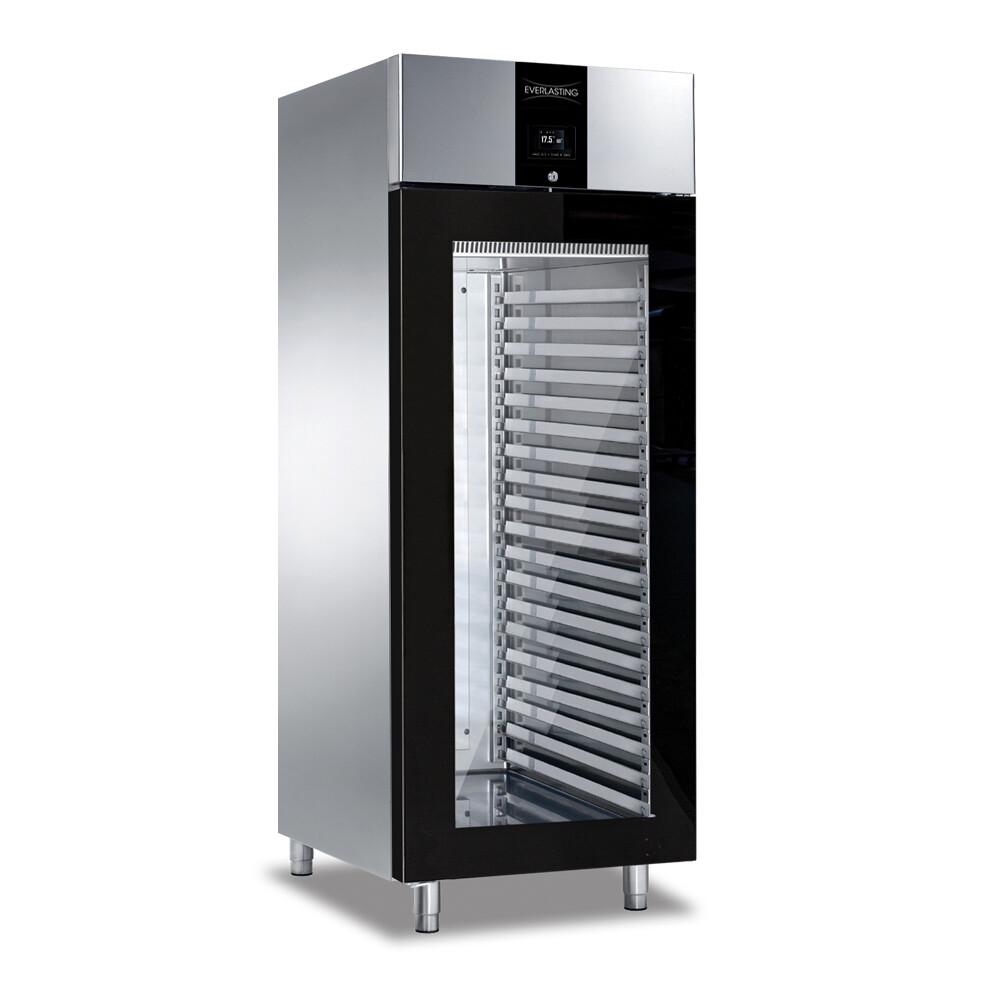

Multi-Lab 70 Glass
Panoramica generale
TEMP: +18°C -25°C
H.R.: 40% - 60%
GAS: R290 Green / R452A (not available for EU markets) REM R452A - CO2
Capacity Lt.: 480

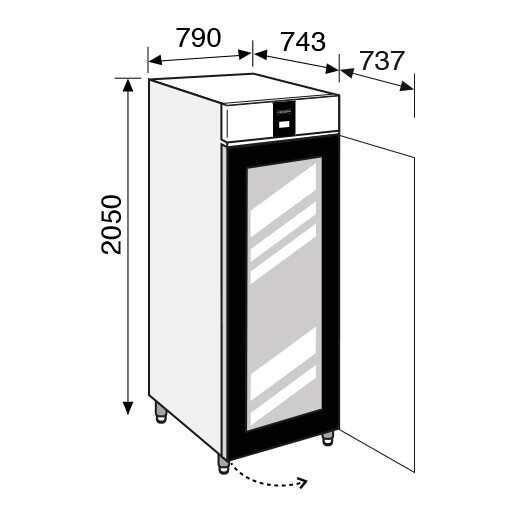

Dimensions: L 790 x P 743 x H 2050 mm
Request offer/info for Multi-Lab 70 Glass
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
MULTI-LAB 70 GREEN
Technical data:
| Code | AZL221 |
| Temperature °C | +18° -25°C |
| H.R | 40% - 60% |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 171 / 191 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 851 W |
| Absorbed power | 1500 W / 8 A |
| Gas | R290 |
MULTI-LAB 70
Technical data:
| Code | AZL221 |
| Temperature °C | +18° -25°C |
| H.R | 40% - 60% |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 171 / 191 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 1750 W / 9 A |
| Gas | R452A |
MULTI-LAB 70 REM
Technical data:
| Code | AZL321 |
| Temperature °C | +18° -25°C |
| H.R | 40% - 60% |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 156 / 171 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 760 W / 3,2 A |
| Gas | R452A |
MULTI-LAB 70 REM CO2
Technical data:
| Code | AZL521 |
| Temperature °C | +18° -25°C |
| H.R | 40% - 60% |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 156 / 171 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 760 W / 3,2 A |
| Gas | CO2 |
Standard equipment

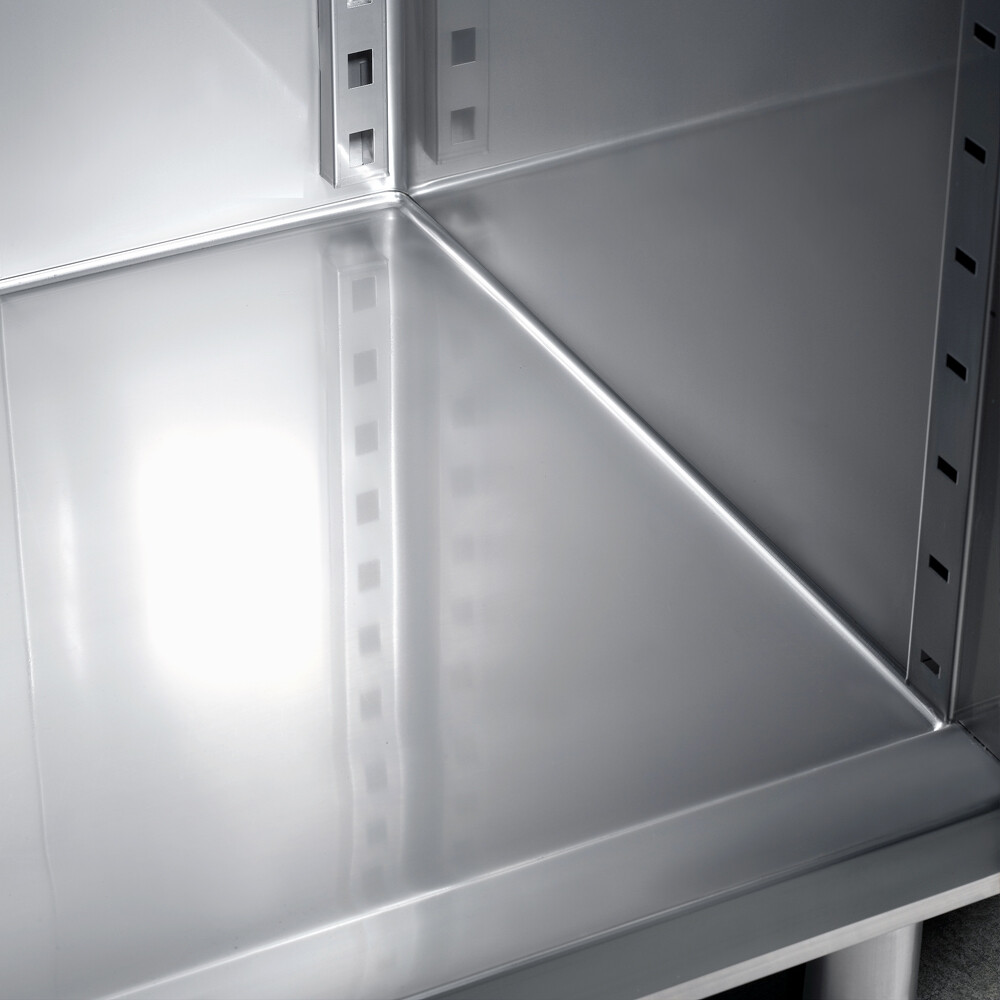

nr 20 pairs of “L”-shaped stainless steel slideways
Optional accessories
-
Germicidal UVC lamp
-
Rack adapter for different wire-shelf standard: GN2/1 / 457x762 / 450x730 / 406x730
-
Front panel and door available in 8 colors
![cassetti.png]()
-
N.B.: For the complete list of accessories see the price list
