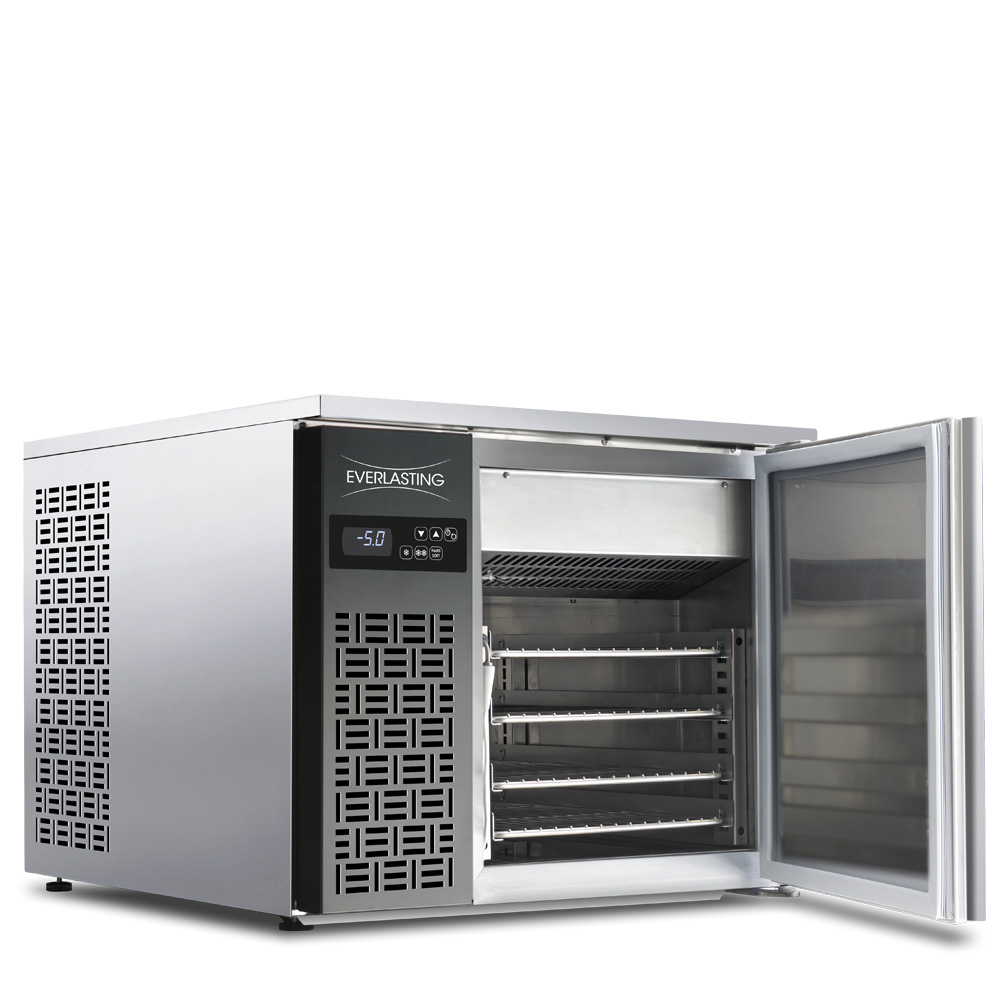

Basic Tray 04
Overview
GN 1/1
Gas: R452A
Chilling +90°C / +3°C: 10 kg.
Freezing +90°C / -18°C: 7 kg.
Dimensions: L 652 x P 706 x H 540 mm
Internal/external: AISI 304 stainless steel
Front control panel: made of plastic-coated black metal sheet
Request offer/info for Basic Tray 04
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
BASIC TRAY 04
Technical data:
| Code | BAB000 |
| Output-Blast chilling +90°C / +3°C Kg. | 10 |
| Output-Shock freezing +90°C / -18°C Kg. | 7 |
| Dimensions | L 652 x P 706 x H 540 mm |
| Dimensions Packed | L 712 x P 766 x H 731 mm |
| GN 1/1 tray or baking pan capacity | 4 (pitch 70 mm.) |
| 5 (passo 52,5 mm.) | |
| 7 (passo 35 mm.) | |
| Ice-cream container / wire-shelf capacity | 4 / 1 |
| Weight N / G Kg. | 49 / 60 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 55°C | 427 W |
| Absorbed power | 569 W / 3,5 A |
| Gas | R452A |
Standard equipment
nr 4 pairs of stainless steel slideways (for GN1/1 trays)
Optional accessories
-
N.B.: For the complete list of accessories see the price list
