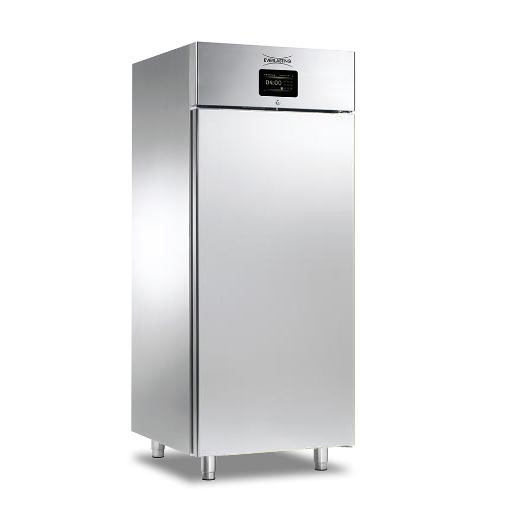

Baking Cab FL 70

Overview

EN 60x40 / 60x80

TEMP: -10°C +40°C

H.R.: 55% - 95%

GAS: R290 Green / R452A (not available for EU markets) / REM R452A - CO2

Capacity Kg / Lt.: 30 / 480

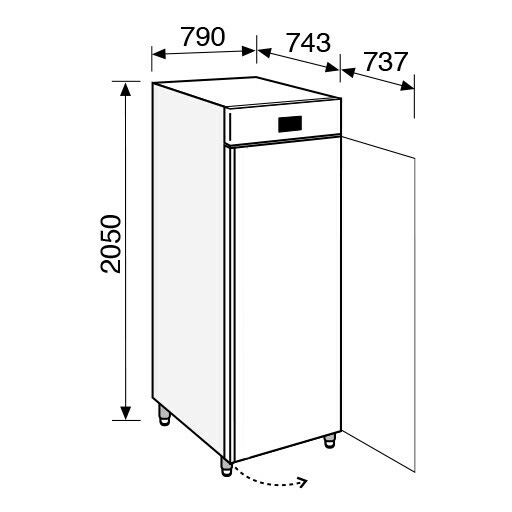

Dimensions: L 790 x P 743 x H 2050 mm

Acconsento al trattamento dei dati personali secondo le normative privacy.

Code	AFR021
Temperature °C	-10° +40°C
H.R.	55% - 95%
Capacity Kg.	30
Dimensions	L 790 x P 743 x H 2050 mm
Dimensions Packed	L 830 x P 790 x H 2206 mm
Trays capacity (40x60 cm) Nr°	20
Capacity containers (40x60x7h cm) Nr°	18
Weight N / G Kg.	181 / 196
Voltage	230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C	611 W
Absorbed power	1700 W / 9 A
Gas	R290

Code	AFS021
Temperature °C	-10° +40°C
H.R.	55% - 95%
Capacity Kg.	30
Dimensions	L 790 x P 743 x H 2050 mm
Dimensions Packed	L 830 x P 790 x H 2206 mm
Trays capacity (40x60 cm) Nr°	20
Capacity containers (40x60x7h cm) Nr°	18
Weight N / G Kg.	181 / 196
Voltage	230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C	668 W
Absorbed power	1700 W / 9 A
Gas	R452A

Code	AFS121
Temperature °C	-10° +40°C
H.R.	55% - 95%
Capacity Kg.	30
Dimensions	L 790 x P 743 x H 2050 mm
Dimensions Packed	L 830 x P 790 x H 2206 mm
Trays capacity (40x60 cm) Nr°	20
Capacity containers (40x60x7h cm) Nr°	18
Weight N / G Kg.	161 / 176
Voltage	230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C	668 W
Absorbed power	1170 W / 6 A
Gas	R452A

Code	AFS421
Temperature °C	-10° +40°C
H.R.	55% - 95%
Capacity Kg.	30
Dimensions	L 790 x P 743 x H 2050 mm
Dimensions Packed	L 830 x P 790 x H 2206 mm
Trays capacity (40x60 cm) Nr°	20
Capacity containers (40x60x7h cm) Nr°	18
Weight N / G Kg.	161 / 176
Voltage	230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C	668 W
Absorbed power	1170 W / 6 A
Gas	CO2

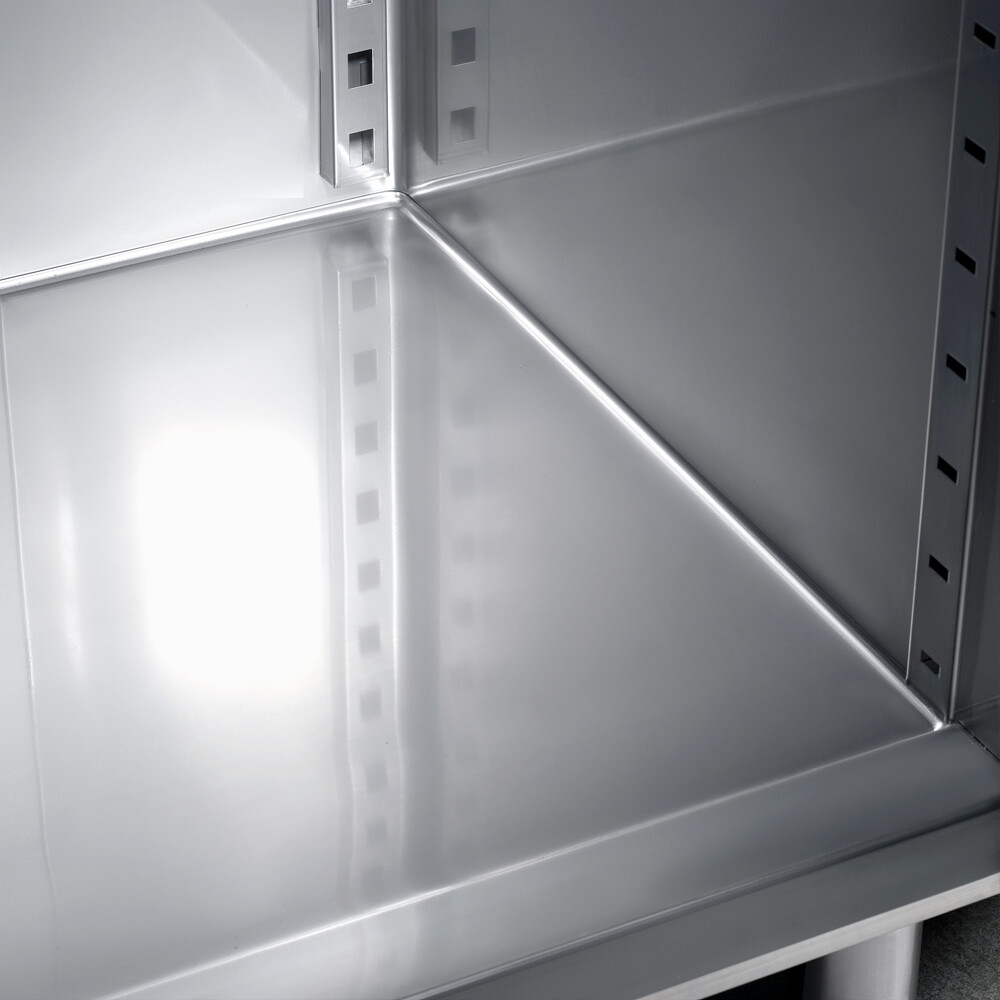

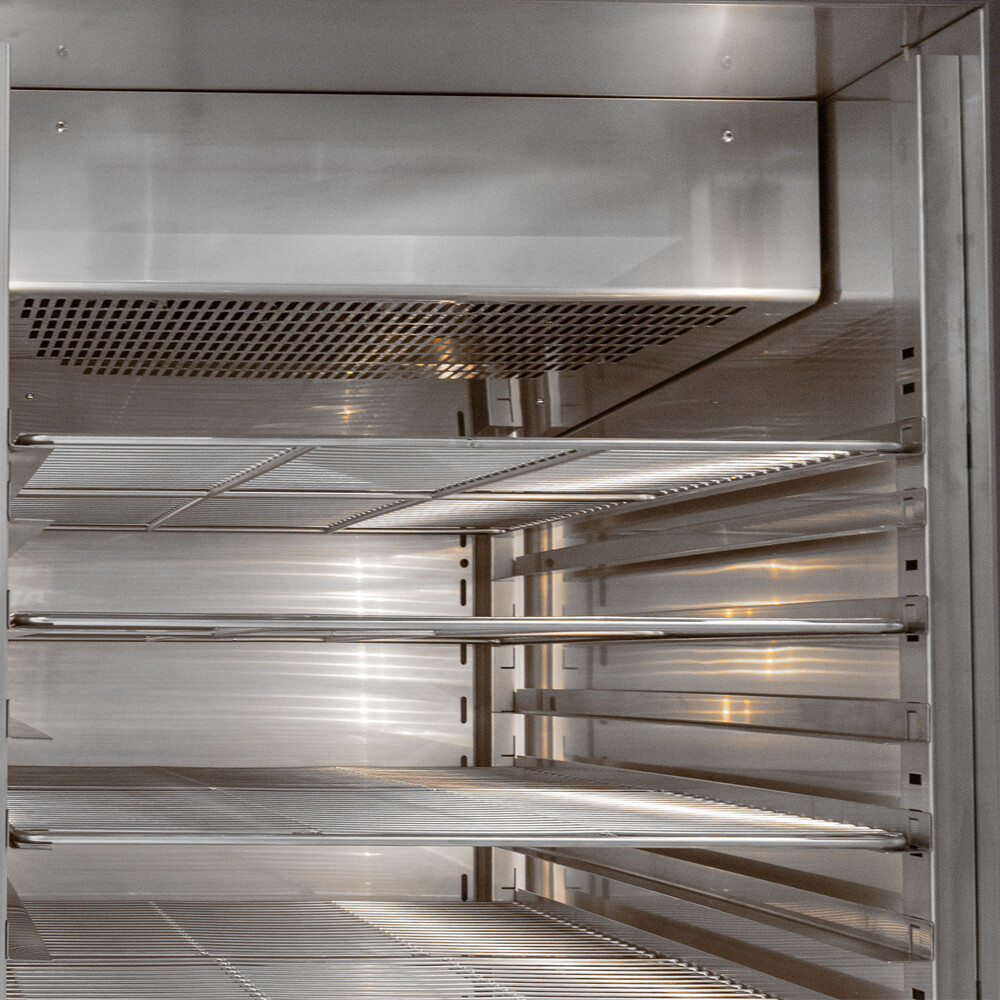

nr 20 pairs of "L"-shaped stainless steel slideways

Germicidal UVC lamp
Wheels
Rack adapter for different wire-shelf standard: GN2/1 / 457x762 / 450x730 / 406x730
Front panel and door available in 8 colors
N.B.: For the complete list of accessories see the price list
