Pastry 145

  1. Home
  2. Products
  3. Cabinets and table for Pastry & Ice cream
  4. Pastry Tab
  5. Pastry 145
fondo stampato
fondo stampato

Overview

TNBV: -2°C +10°C

BTV: -10°C -20°C

Refrigerant: R290

Dimensions WITHOUT WORKING TOP S: L 1456 x P 750 x H 810 mm

Dimensions WITH WORKING TOP P: L 1456 x P 750 x H 850 mm

Dimensions WITH SPLASHBACK: A 1456 x P 750 x H 950 mm

TNBV S

Technical data:

Code TBJ02000000000
Temperature °C -2° +10°C
Dimensions L 1456 x P 750 x H 810 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 135 / 141
Voltage 230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C 385 W
Absorbed power 240 W / 1,7 A
Refrigerant R290

TNBV P

Technical data:

Code TBJ02100000000
Temperature °C -2° +10°C
Dimensions L 1456 x P 750 x H 850 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 135 / 141
Voltage 230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C 385 W
Absorbed power 240 W / 1,7 A
Refrigerant R290

TNBV A

Technical data:

Code TBJ02200000000
Temperature °C -2° +10°C
Dimensions L 1456 x P 750 x H 950 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 135 / 141
Voltage 230V - 50 Hz
Refrig. power - Evap. -10°C / Cond. 54,4°C 385 W
Absorbed power 240 W / 1,7 A
Refrigerant R290

BTV S

Technical data:

Code TCJ02000000000
Temperature °C -10° -20°C
Dimensions L 1456 x P 750 x H 810 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 137 / 143
Voltage 230V - 50 Hz
Refrig. power - Evap. -23,3°C / Cond. 54,4°C 488 W
Absorbed power 420 W / 2,6 A
Refrigerant R290

BTV P

Technical data:

Code TCJ02100000000
Temperature °C -10° -20°C
Dimensions L 1456 x P 750 x H 850 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 137 / 143
Voltage 230V - 50 Hz
Refrig. power - Evap. -23,3°C / Cond. 54,4°C 488 W
Absorbed power 420 W / 2,6 A
Refrigerant R290

BTV A

Technical data:

Code TCJ02200000000
Temperature °C -10° -20°C
Dimensions L 1456 x P 750 x H 950 mm
Dimensions Packed L 1516 x P 810 x H 1110 mm
Weight N / G  Kg. 137 / 143
Voltage 230V - 50 Hz
Refrig. power - Evap. -23,3°C / Cond. 54,4°C 488 W
Absorbed power 420 W / 2,6 A
Refrigerant R290

Standard equipment

nr 4 pairs of “L”-shaped stainless steel slideways and nr 1 plastic-coated wire shelf per door

Optional accessories

  • Germicidal UVC lamp
  • Internal drawers on slideways (h 75 mm - h 150 mm)
  • N.B.: For the complete list of accessories see the price list

Remote connection system via dedicated App

Learn more

Available models

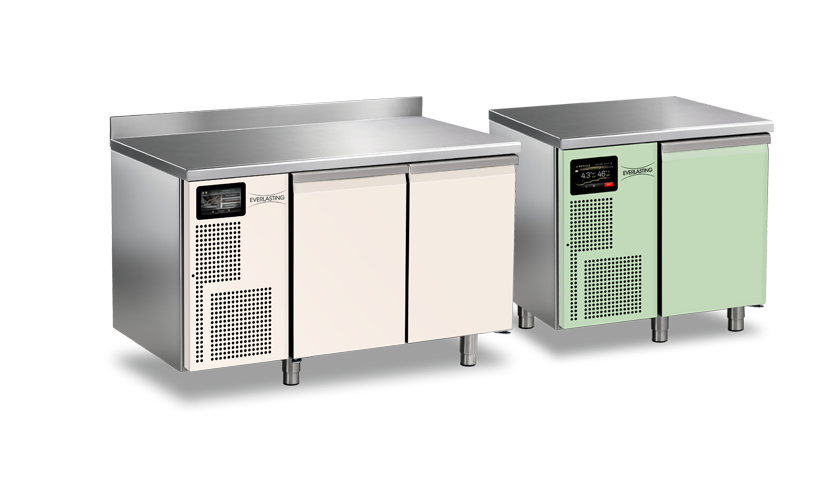

RAL colors

The proposal of RAL colors to be combined with traditional stainless steel allows you to customize the design of the kitchen environment by adapting it to different stylistic needs without sacrificing functionality and to the efficiency that distinguishes Everlasting products.
The choice of finish for refrigerated cabinets has evolved from a mere technical detail into a definitive aesthetic design statement. A customized RAL palette opens the door to a wide range of stylistic solutions.
