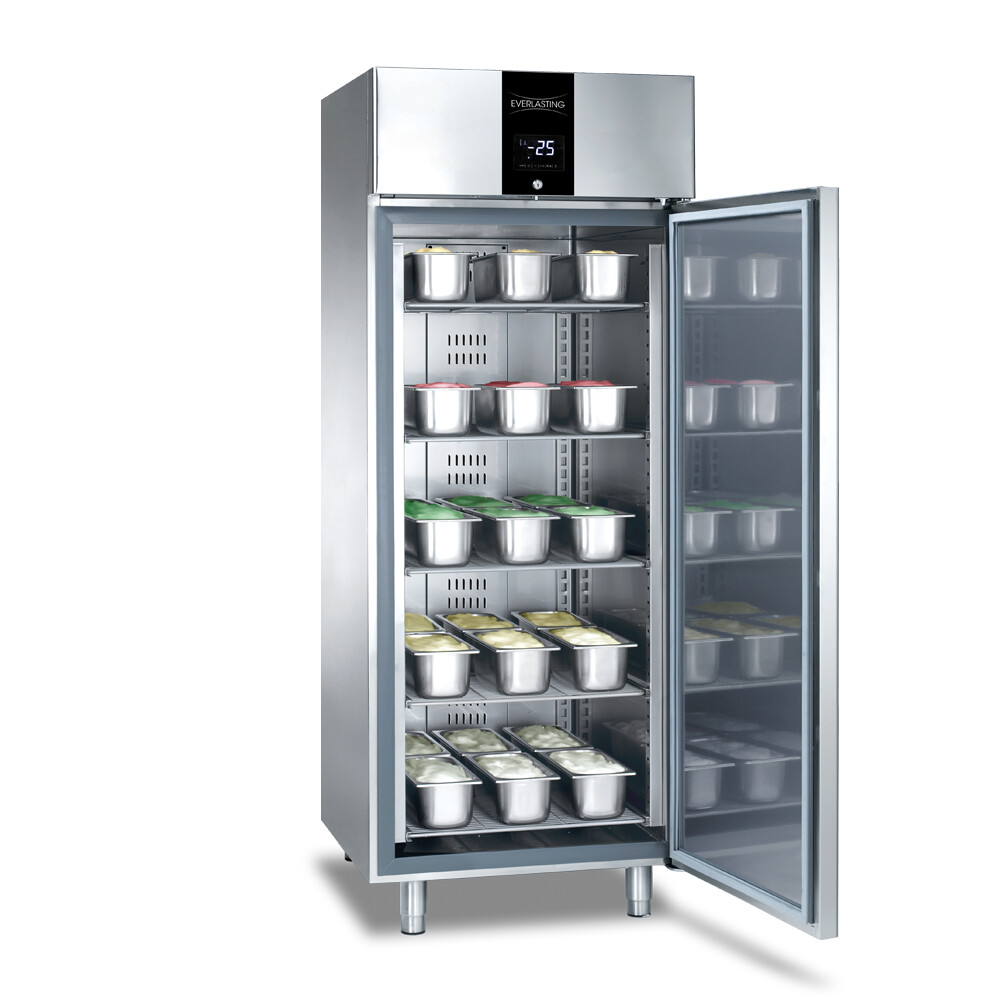

Panoramica generale
TEMP: -12°C -25°C
GAS: R290 Green / R452A (not available for EU markets) REM R452A - CO2
Capacity Lt.: 480 / 555

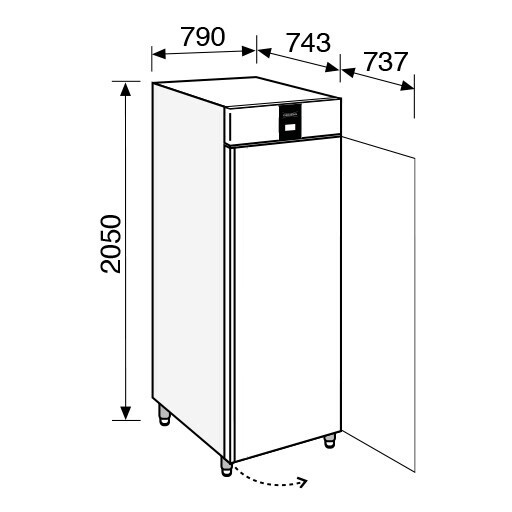

Dimensions: L 790 x P 743 x H 2050 mm
Request offer/info for Ice 70
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
BTV GREEN
Technical data:
| Code | AIK021 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 145 / 160 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 650 W |
| Absorbed power | 600 W / 3,3 A |
| Gas | R290 |
BTST GREEN
Technical data:
| Code | AIK221 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 555 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 148 / 163 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 650 W |
| Absorbed power | 600 W / 3,3 A |
| Gas | R290 |
BTV
Technical data:
| Code | AIL021 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 145 / 160 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 900 W / 4,9 A |
| Gas | R452A |
BTV REM
Technical data:
| Code | AIL121 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 125 / 140 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 200 W / 1,1 A |
| Gas | R452A |
BTST
Technical data:
| Code | AIL221 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 555 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 148 / 163 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 730 W |
| Absorbed power | 610 W / 3,3 A |
| Gas | R452A |
BTV REM CO2
Technical data:
| Code | AIL421 |
| Temperature °C | -12° -25°C |
| Capacity Lt. | 480 |
| Dimensions | L 790 x P 743 x H 2050 mm |
| Dimensions Packed | L 830 x P 790 x H 2206 mm |
| Weight N / G Kg. | 125 / 140 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 54,4°C | 960 W |
| Absorbed power | 200 W / 1,1 A |
| Gas | CO2 |
Standard equipment

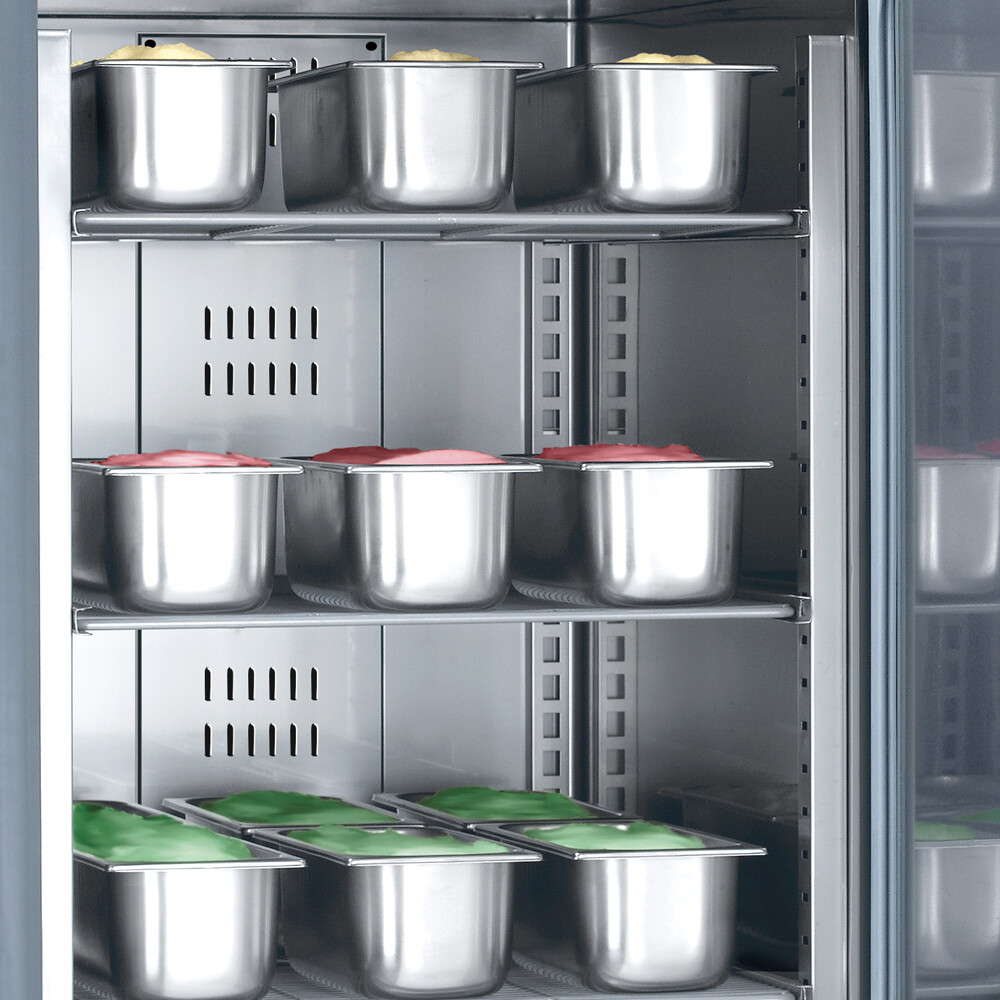

nr 5 stainless steel slideways and nr 5 60x52 plastic-coated wire shelves
Optional accessories
-

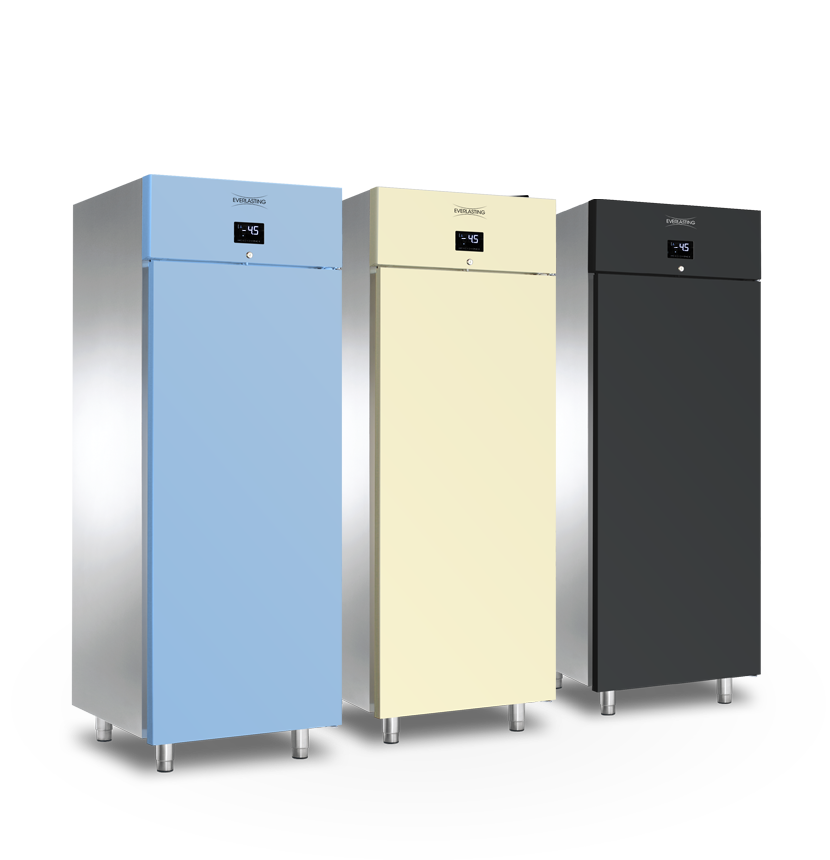

Front panel and door available in 8 colors
![cassetti.png]()
-
N.B.: For the complete list of accessories see the price list
