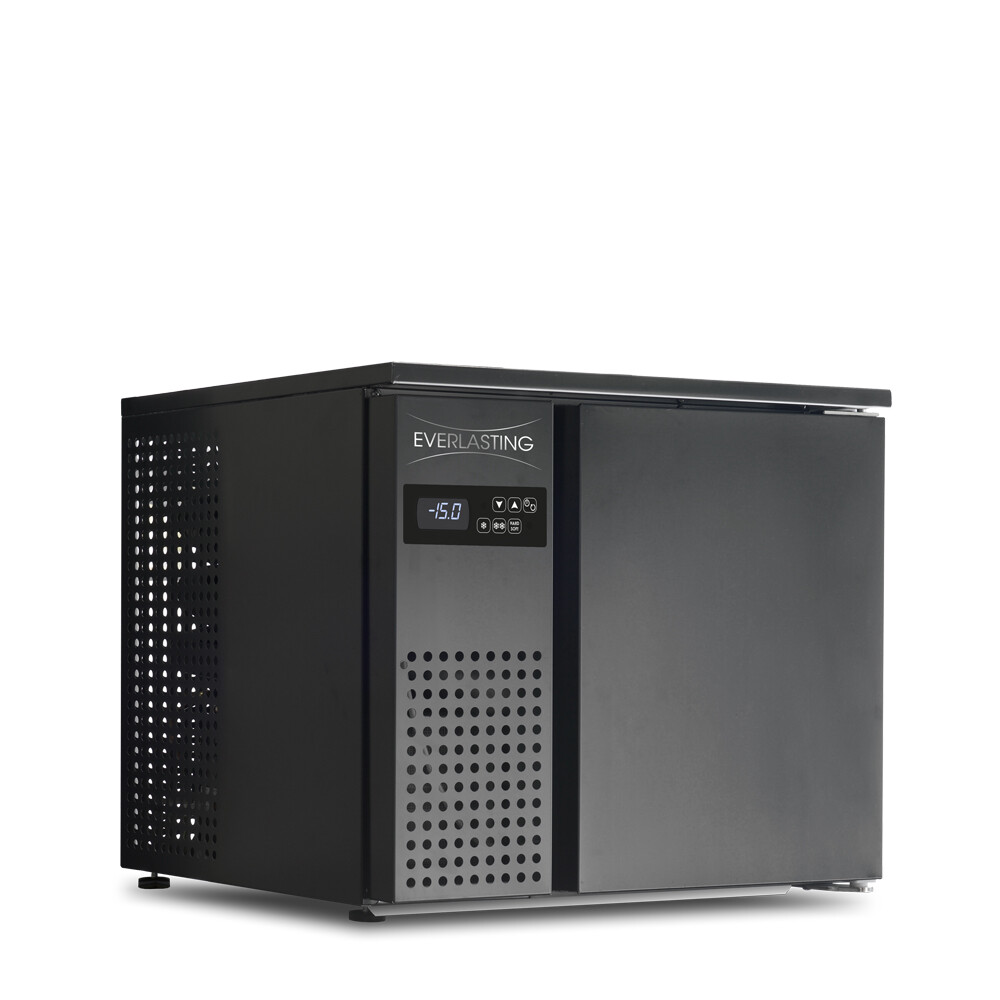

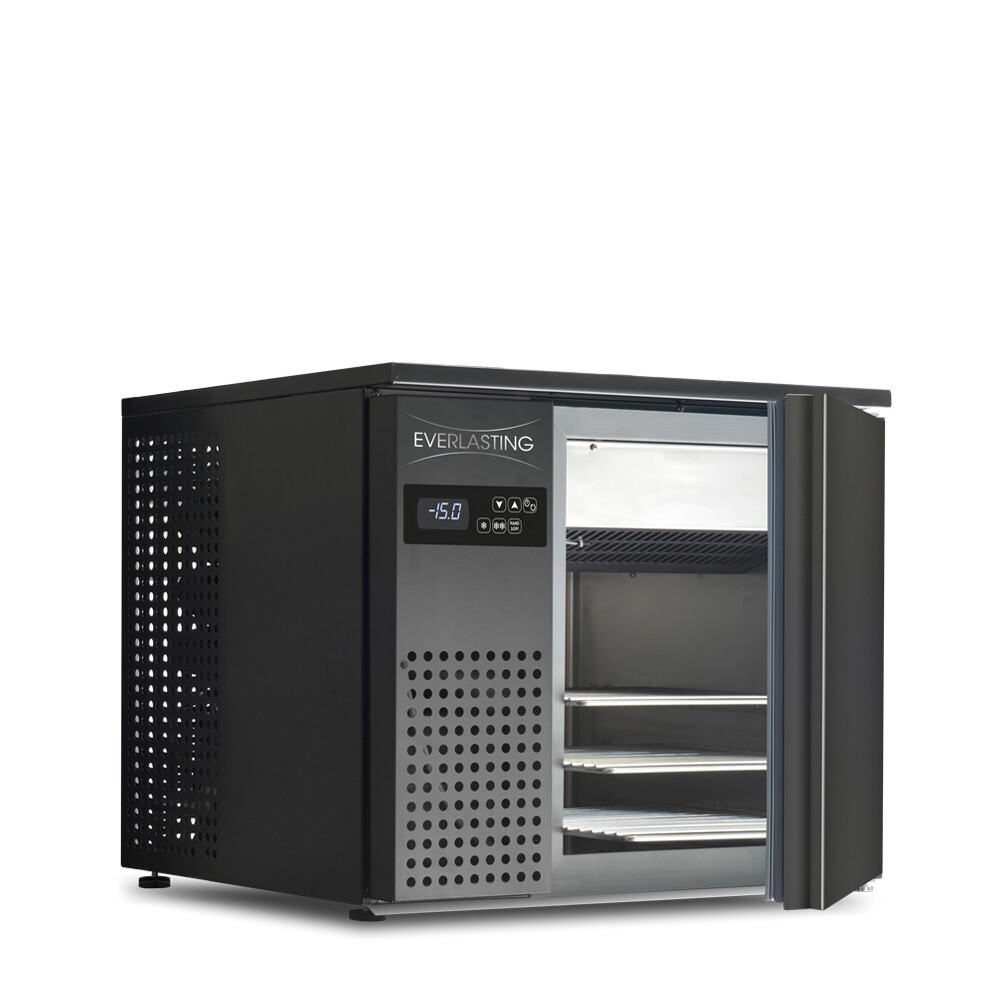

Basic Tray MINI
Overview
GN 2/3
Gas: R290 Green
Chilling +90°C / +3°C: 7 kg.
Freezing +90°C / -18°C: 5 kg.

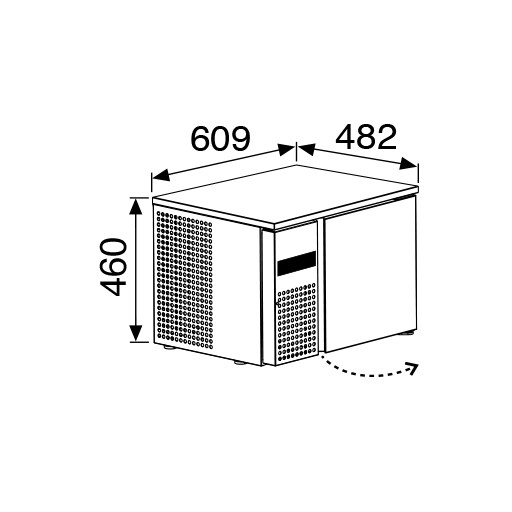

Dimensions: L 609 x P 482 x H 460 mm
Internal: Aisi 304 stainless steel
External plastic-coated black metal sheet
Request offer/info for Basic Tray MINI
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
BASIC TRAY MINI
Technical data:
| Code | BAA000 |
| Output-Blast chilling +90°C / +3°C Kg. | 7 |
| Output-Shock freezing +90°C / -18°C Kg. | 5 |
| Dimensions | L 609 x P 482 x H 460 mm |
| Dimensions Packed | L 669 x P 542 x H 651 mm |
| GN 2/3 tray or baking pan capacity | 3 (pitch 53 mm.) |
| Ice-cream container capacity | 2 |
| Weight N / G Kg. | 35 / 39 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -25°C / Cond. 55°C | 396 W |
| Absorbed power | 569 W / 3,5 A |
| Gas | R290 |
Standard equipment
nr 1 stainless steel GN2/3 wire shelf
Optional accessories
-
Bottle racks
![bott.jpg]()
-
N.B.: For the complete list of accessories see the price list
