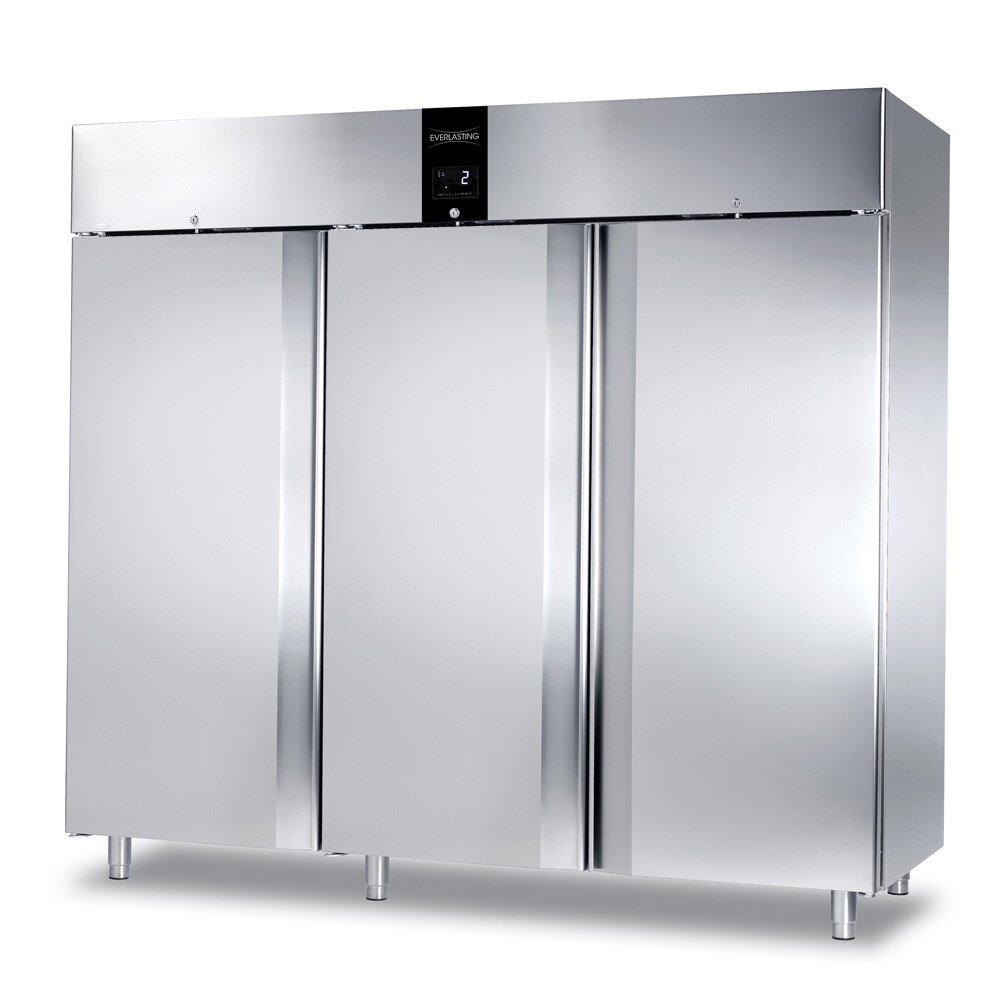

Professional 2300
Overview
TNBV: -2°C +10°C
BTV: -10°C -22°C
GAS: R290 Green / R452A (not available for EU markets)
Capacity Lt.: 2102

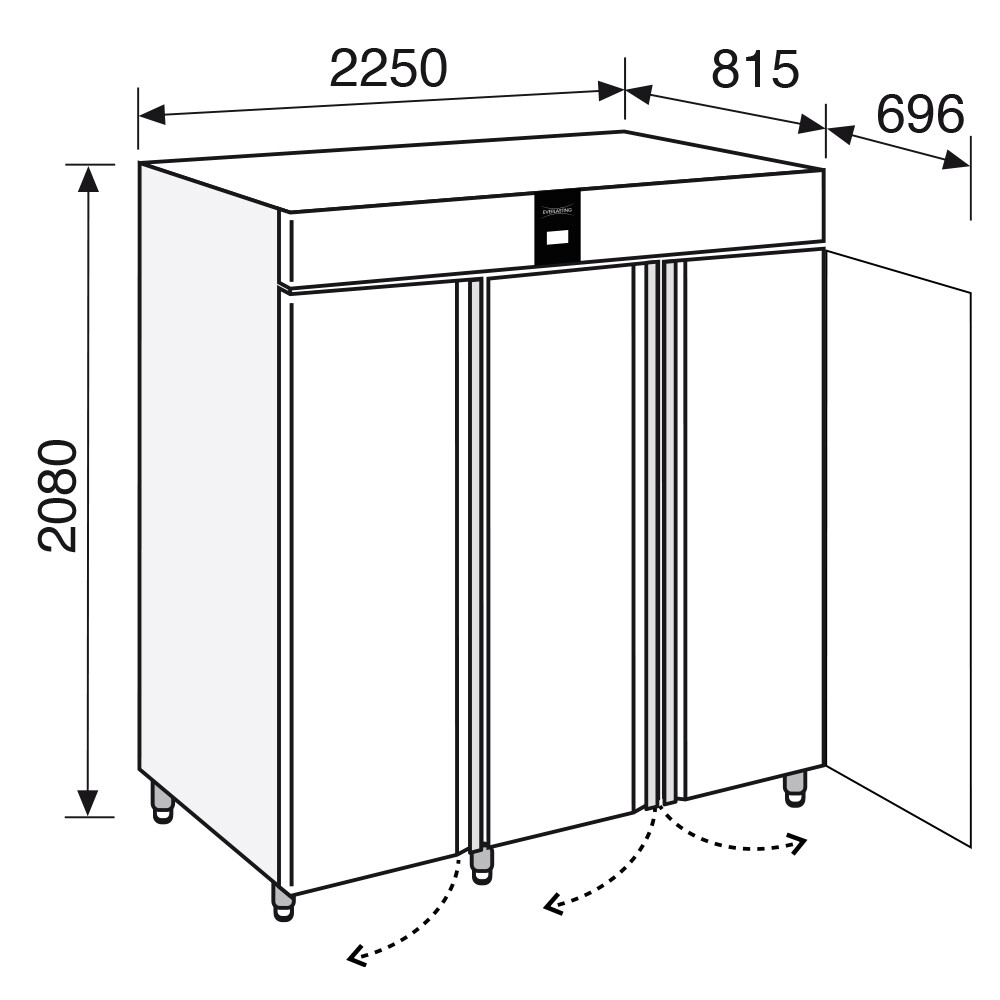

Dimensions: L 2250 x P 815-850 REM x H 2080 mm
Request offer/info for Professional 2300
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
TNBV
Technical data:

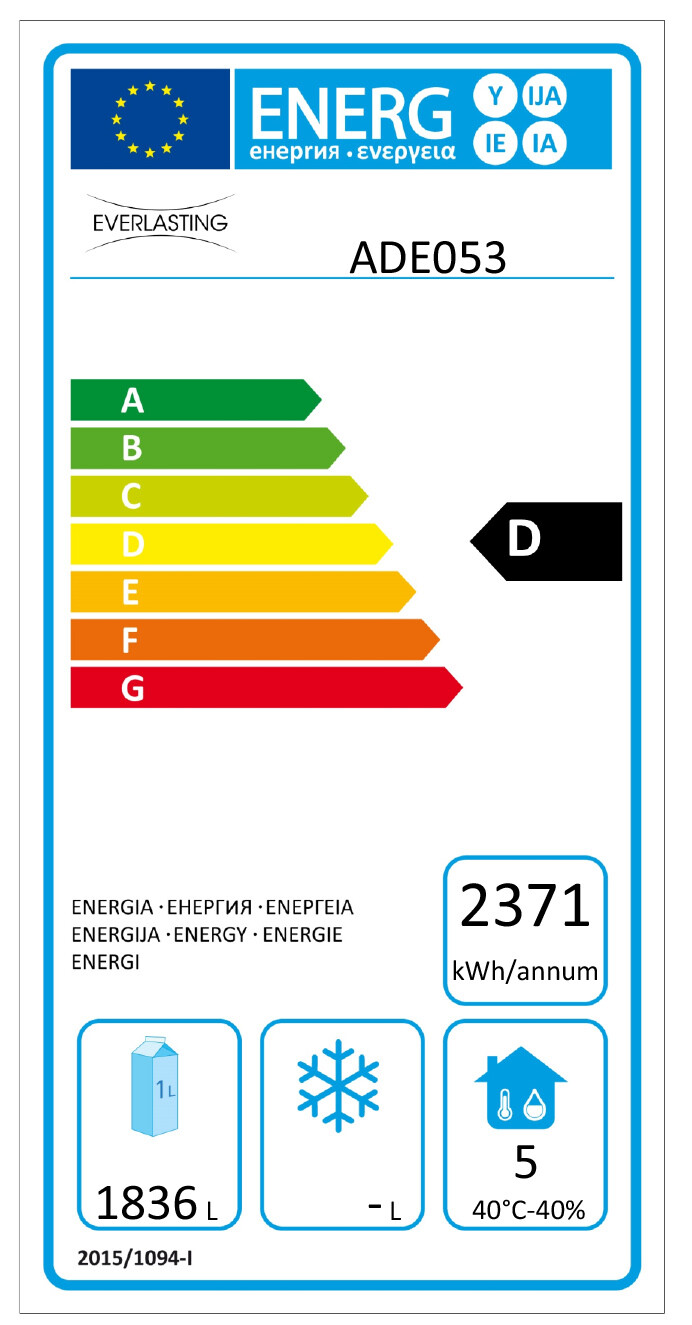

| Code | ADE053 |
| Temperature °C | -2° +10°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 815 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 315 / 347 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 1844 W |
| Absorbed power | 1580 W / 8,6 A |
| Gas | R452 |
TNBV GREEN
Technical data:
| Code | ADC053 |
| Temperature °C | -2° +10°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 815 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 315 / 347 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 1426 W |
| Absorbed power | 740 W / 4,56 A |
| Gas | R290 |
BTV GREEN
Technical data:

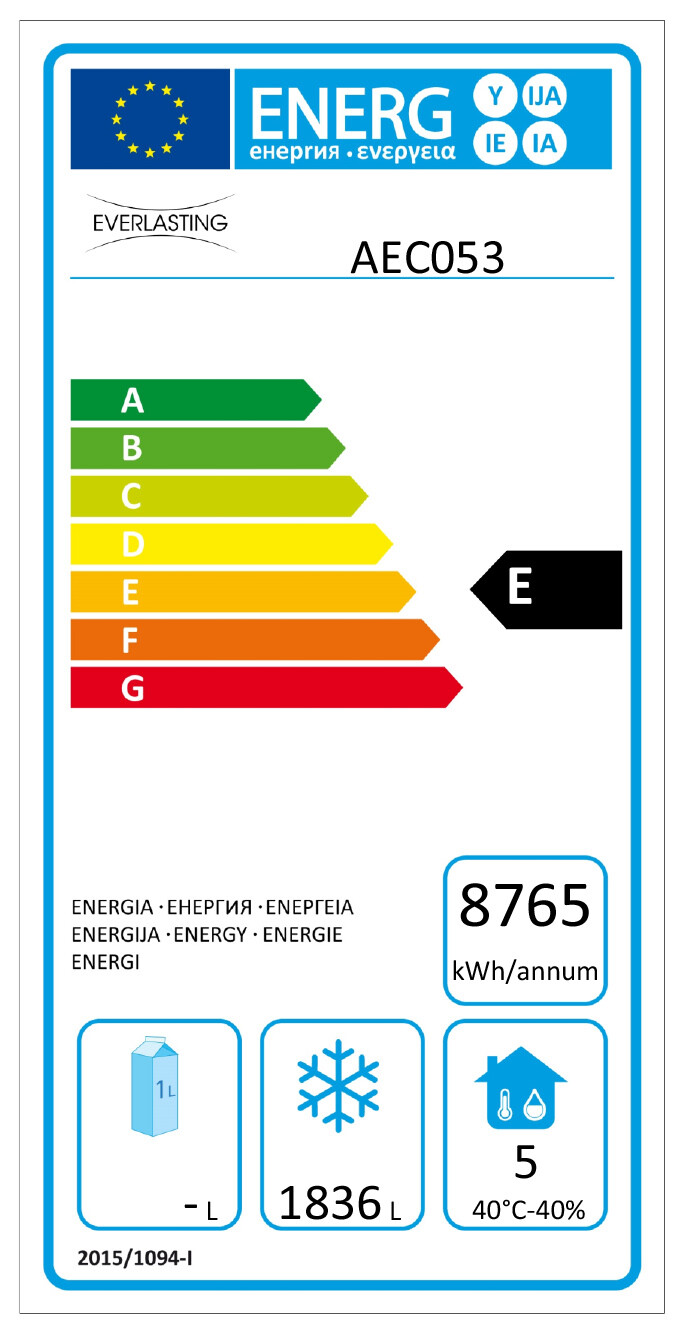

| Code | AEC053 |
| Temperature °C | -10° -22°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 815 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 325 / 357 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 1718 W |
| Absorbed power | 1700 W / 10,5 A |
| Gas | R290 |
TNBV REM
Technical data:
| Code | ADE153 |
| Temperature °C | -2° +10°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 850 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 294 / 326 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 1844 W |
| Absorbed power | 80 W / 0,32 A |
| Gas | R452 |
BTV
Technical data:

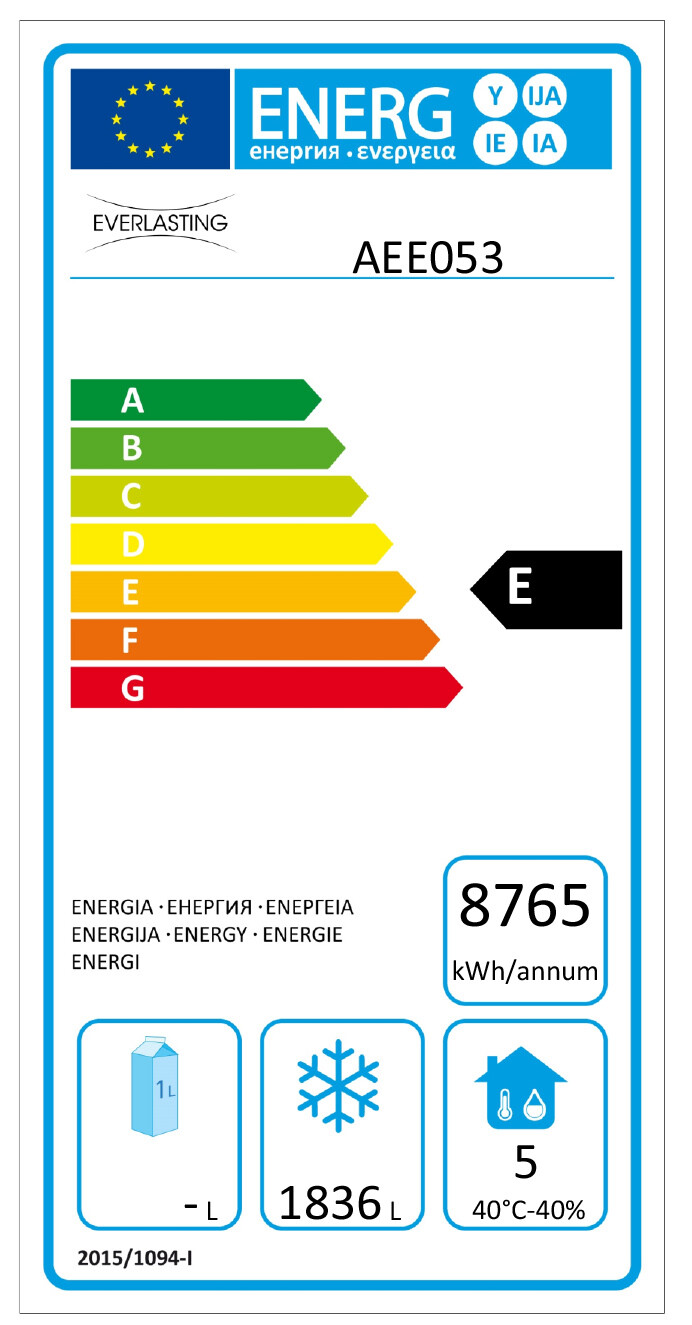

| Code | AEE053 |
| Temperature °C | -10° -22°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 850 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 325 / 357 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 2070 W |
| Absorbed power | 2080 W / 11,2 A |
| Gas | R452 |
BTV REM
Technical data:
| Code | AEE153 |
| Temperature °C | -10° -22°C |
| Capacity Lt. | 2102 |
| Dimensions | L 2250 x P 850 x H 2080 mm |
| Dimensions Packed | L 2290 x P 880 x H 2235 mm |
| Weight N / G Kg. | 284 / 316 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 2070 W |
| Absorbed power | 360 W / 1,8 A |
| Gas | R452 |
Standard equipment
nr 3 plastic-coated wire shelves with stainless steel slideways for each door
Optional accessories
-
Germicidal UVC lamp
-
Internal drawers on slideways
![cassetti.png]()
-
Pastry setup
-
Bottle racks
![cassetti.png]()
-
Meat and Salami hook rail
-
Single door or two half doors
-
Wheels
-

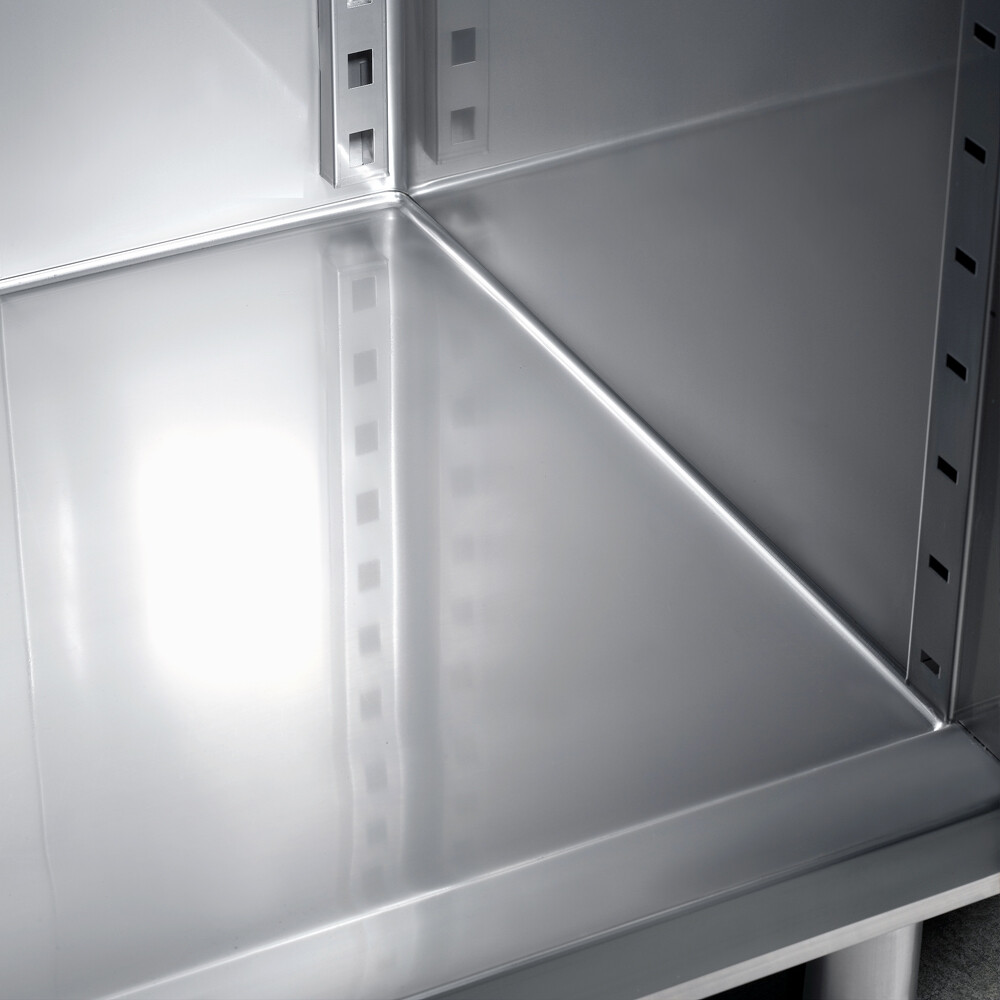

Stainless steel wire-shelves
-
Plastic-coated reinforced wire shelf
-
Front panel and door available in 8 colors
![cassetti.png]()
-
N.B.: For the complete list of accessories see the price list
