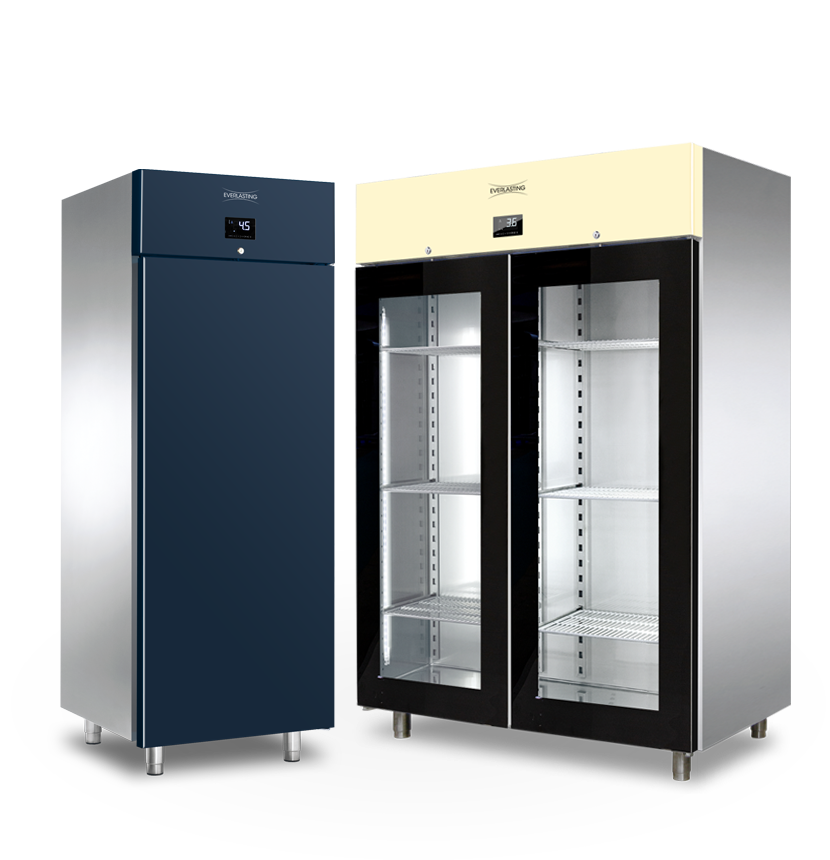

Master 1500 Glass
Overview
TNV: +2°C +10°C
BTV: -10°C -20°C
GAS: R290 Green
Capacity Lt.: 1365
Dimensions: L 1500 x P 850 x H 2080 mm
Request offer/info for Master 1500 Glass
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
TNV GREEN
Technical data:
| Code | ACO242 |
| Temperature °C | +2° +10°C |
| Capacity Lt. | 1365 |
| Dimensions | L 1500 x P 850 x H 2080 mm |
| Dimensions Packed | L 1540 x P 880 x H 2235 mm |
| Weight N / G Kg. | 250 / 270 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 713 W |
| Absorbed power | 390 W / 2,48 A |
| Gas | R290 |
BTV GREEN
Technical data:
| Code | AEO242 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 1365 |
| Dimensions | L 1500 x P 850 x H 2080 mm |
| Dimensions Packed | L 1540 x P 880 x H 2235 mm |
| Weight N / G Kg. | 252 / 272 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 859 W |
| Absorbed power | 970 W / 6 A |
| Gas | R290 |
Standard equipment
nr 3 plastic-coated wire shelves with stainless steel slideways for each door
Optional accessories
-
Germicidal UVC lamp
-
Internal drawers on slideways
![cassetti.png]()
-
Pastry setup
-
Bottle racks
![cassetti.png]()
-
Meat and Salami hook rail
-
Single door or two half doors
-
Wheels
-
Stainless steel wire-shelves
-
Plastic-coated reinforced wire shelf
-
N.B.: For the complete list of accessories see the price list
