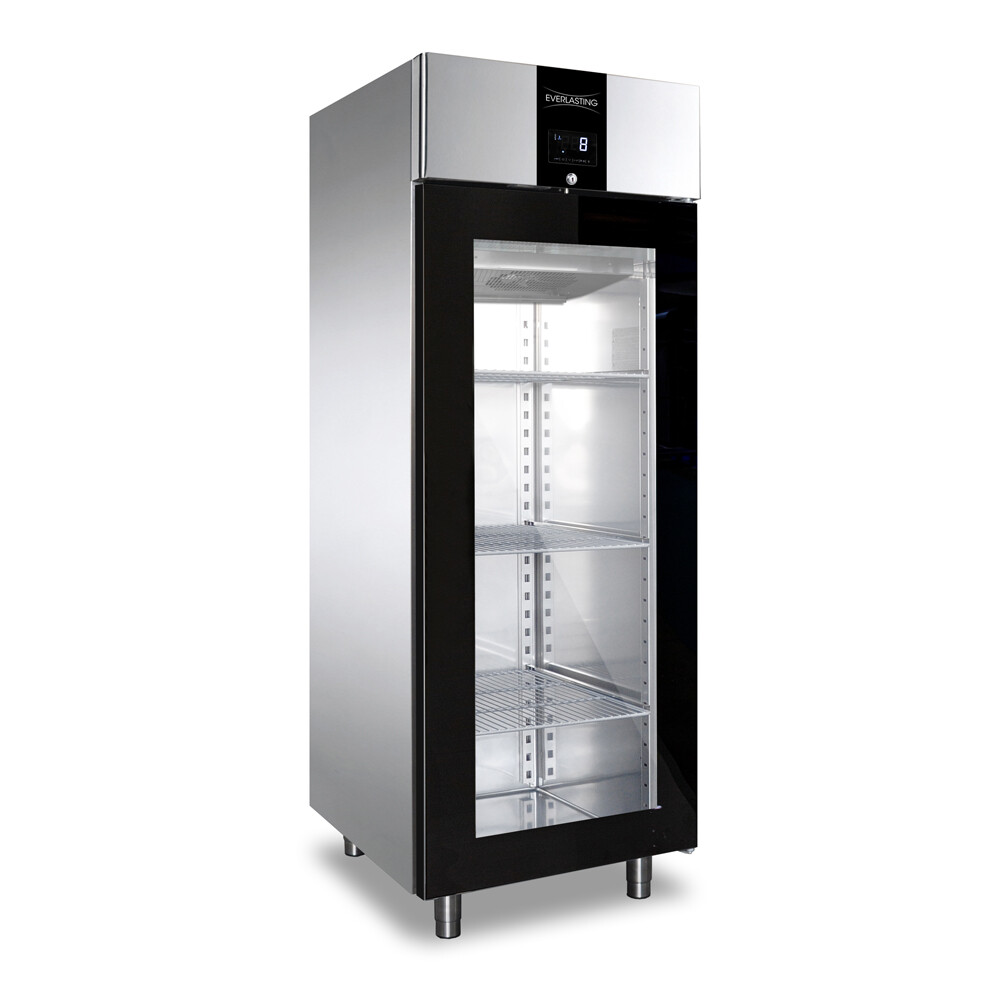

Classic 700 Glass
Overview
TNV: +2°C +10°C
BTV: -10°C -20°C
GAS: R290 Green / R452A (not available for EU markets) / REM R452A - CO2
Capacity Lt.: 625

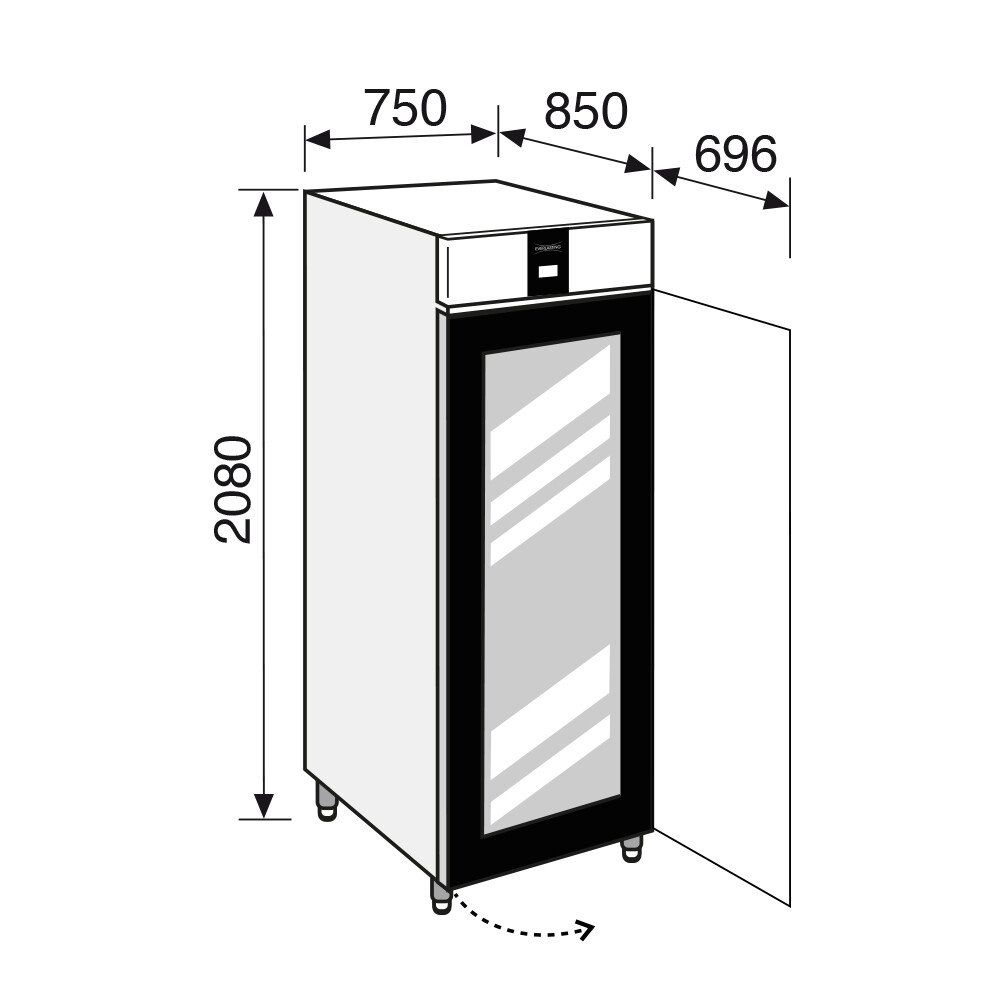

Dimensions: L 750 x P 850 x H 2080 mm
Request offer/info for Classic 700 Glass
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
TNV REM
Technical data:
| Code | ACF321 |
| Temperature °C | +2° +10°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 140 / 152 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 51 W / 0,26 A |
| Gas | R452A |
TNV GREEN
Technical data:
| Code | ACD221 |
| Temperature °C | +2° +10°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 156 / 168 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 406 W |
| Absorbed power | 240 W / 1,55 A |
| Gas | R290 |
BTV GREEN
Technical data:
| Code | AED221 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 158 / 170 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 593 W |
| Absorbed power | 640 W / 4 A |
| Gas | R290 |
TNV
Technical data:
| Code | ACF221 |
| Temperature °C | +2° +10°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 156 / 168 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 480 W / 2,7 A |
| Gas | R452A |
BTV
Technical data:
| Code | AEF221 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 158 / 170 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 855 W |
| Absorbed power | 950 W / 5,2 A |
| Gas | R452A |
BTV REM
Technical data:
| Code | AEF321 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 143 / 155 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 855 W |
| Absorbed power | 140 W / 0,6 A |
| Gas | R452A |
TNV CO2
Technical data:
| Code | ACF521 |
| Temperature °C | +2° +10°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 140 / 152 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 565 W |
| Absorbed power | 51 W / 0,26 A |
BTV CO2
Technical data:
| Code | AEF542 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 625 |
| Dimensions | L 750 x P 850 x H 2080 mm |
| Dimensions Packed | L 770 x P 880 x H 2235 mm |
| Weight N / G Kg. | 143 / 155 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 855 W |
| Absorbed power | 140 W / 0,6 A |
Standard equipment

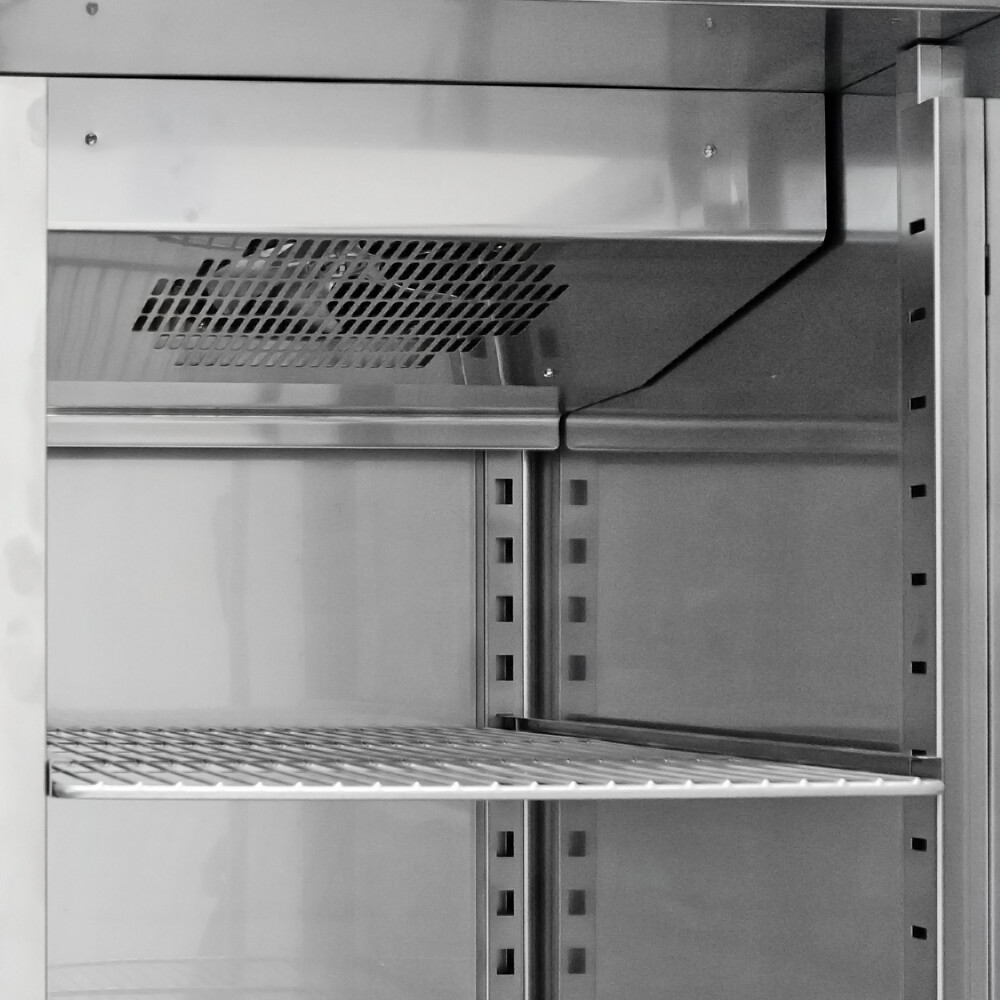

nr 3 plastic-coated wire shelves with stainless steel slideways for each door
Optional accessories
-
Germicidal UVC lamp
-
Internal drawers on slideways
![cassetti.png]()
-
Pastry setup
-
Bottle racks
![cassetti.png]()
-
Meat and Salami hook rail
-
Single door or two half doors
-
Wheels
-
Stainless steel wire-shelves
-
Plastic-coated reinforced wire shelf
-
Front panel and door available in 8 colors
![cassetti.png]()
-
N.B.: For the complete list of accessories see the price list
