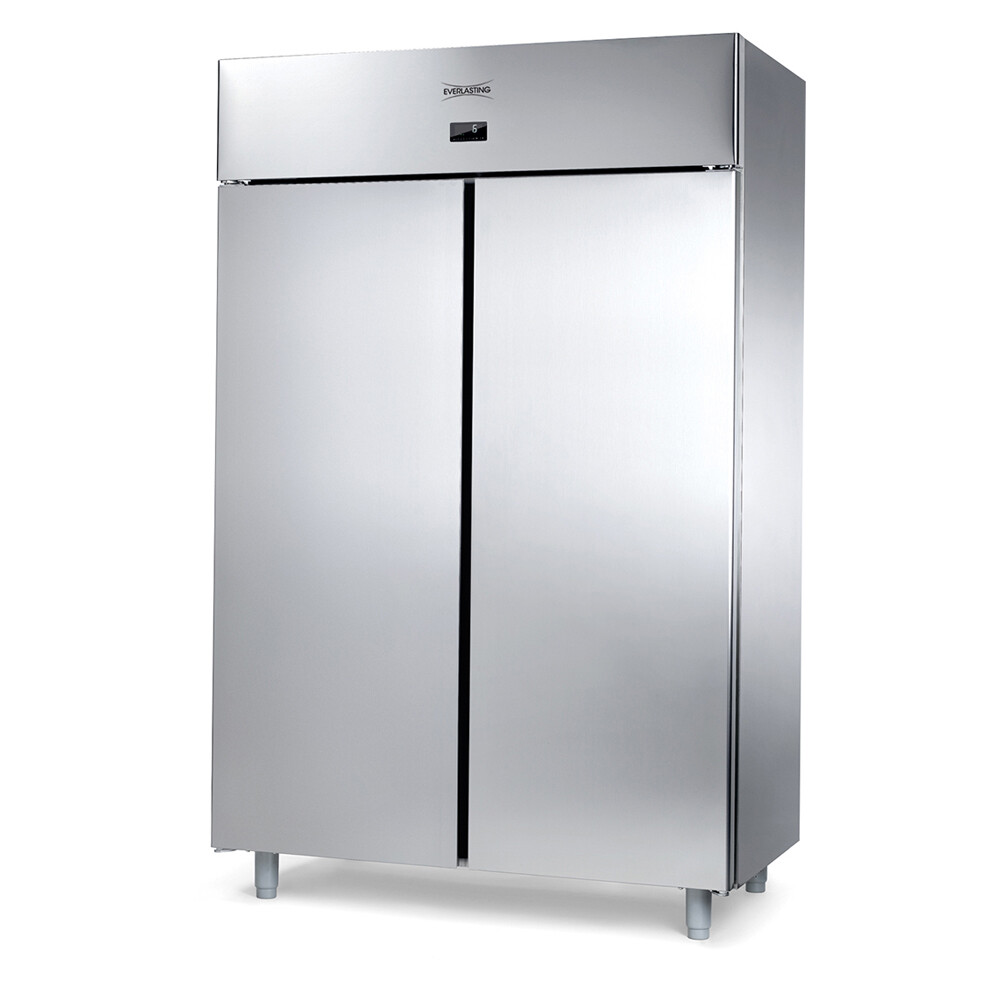

Quick 900
Overview
TNBV: -2°C +10°C
BTV: -10°C -20°C
GAS: R290 Green
Capacity Lt.: 924
Dimensions: 1200 x P 743 x H 1950 mm
Request offer/info for Quick 900
This content is reserved
In order to use our online services and download you must be registered, or log in to the reserved area.
TNBV GREEN
Technical data:
| Code | AD1H82 |
| Temperature °C | -2° +10°C |
| Capacity Lt. | 924 |

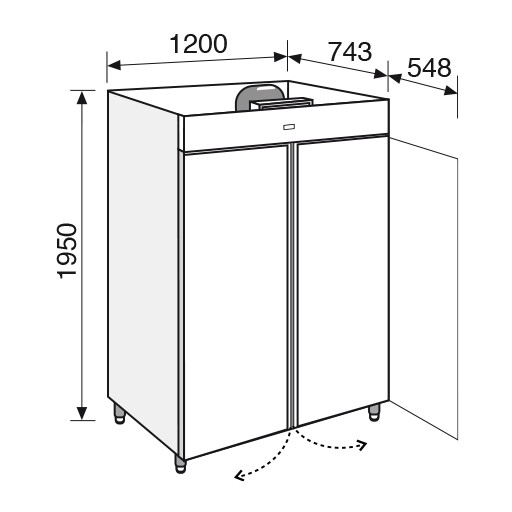

| Dimensions | L 1200 x P 743 x H 1950 mm |
| Dimensions Packed | L 1240 x P 795 x H 2106 mm |
| Weight N / G Kg. | 180 / 197 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -10°C / Cond. 54,4°C | 611 W |
| Absorbed power | 510 W / 2,8 A |
| Gas | R290 |
BTV GREEN
Technical data:
| Code | AF1H82 |
| Temperature °C | -10° -20°C |
| Capacity Lt. | 924 |
| Dimensions | L 1200 x P 743 x H 1950 mm |
| Dimensions Packed | L 1240 x P 795 x H 2106 mm |
| Weight N / G Kg. | 190 / 207 |
| Voltage | 230V - 50 Hz |
| Refrig. power - Evap. -23,3°C / Cond. 54,4°C | 764 W |
| Absorbed power | 790 W / 4,5 A |
| Gas | R290 |
Standard equipment

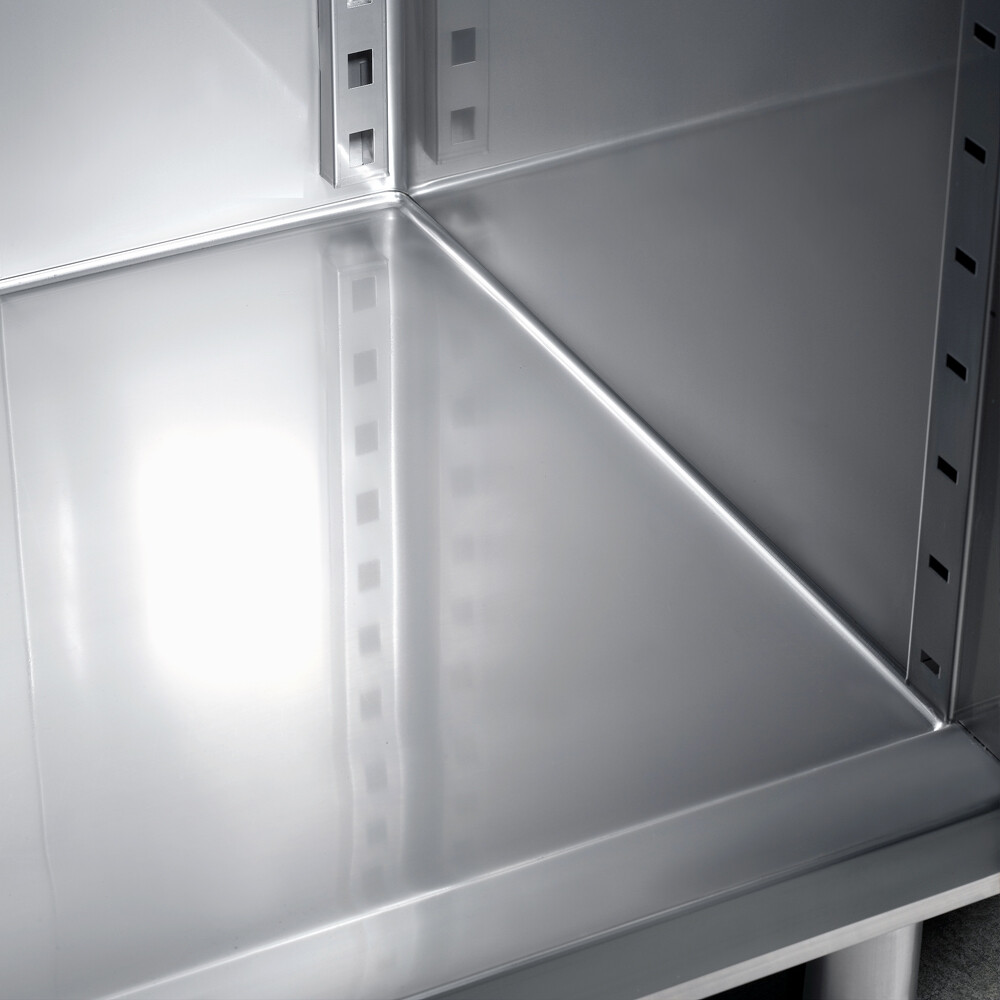

nr 3 plastic-coated wire shelves with stainless steel slideways for each door
Optional accessories
-
Wheels
-
Key-lock
-
Plastic-coated wire shelf
-
N.B.: For the complete list of accessories see the price list
