Refrigerated cabinets

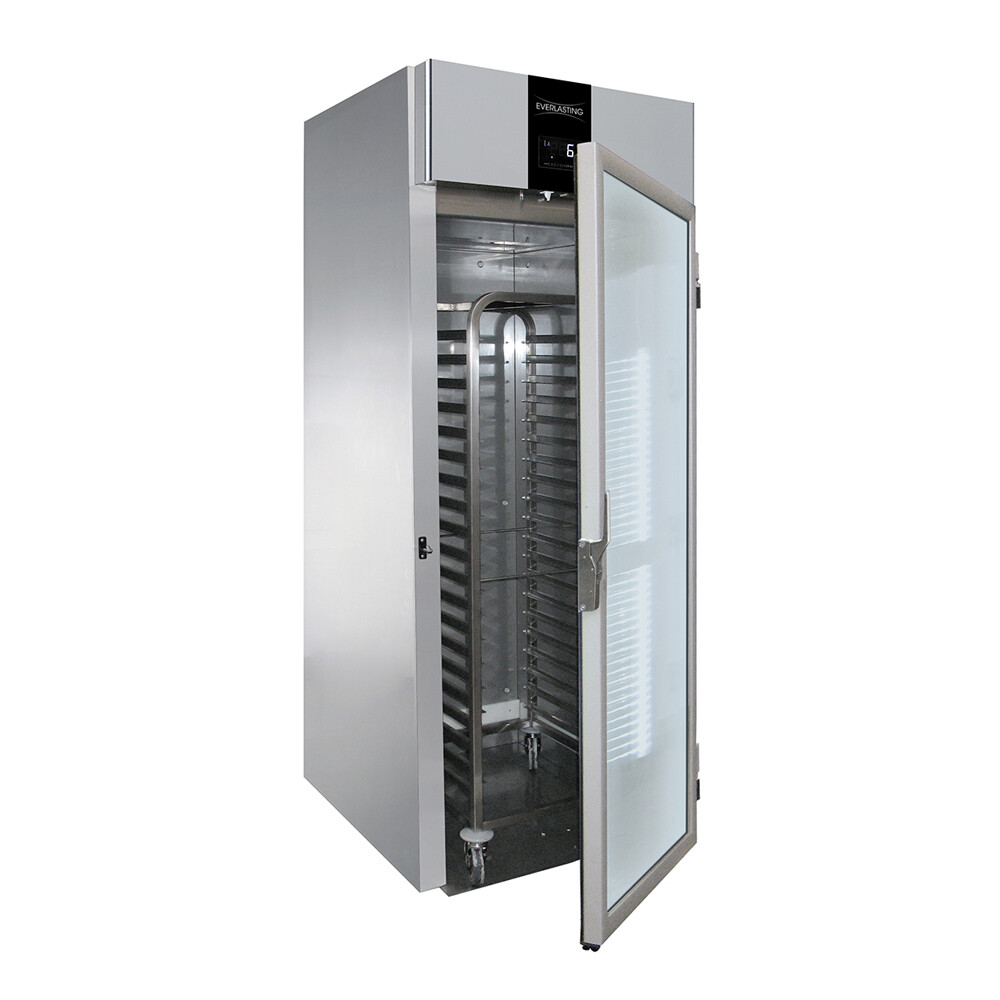

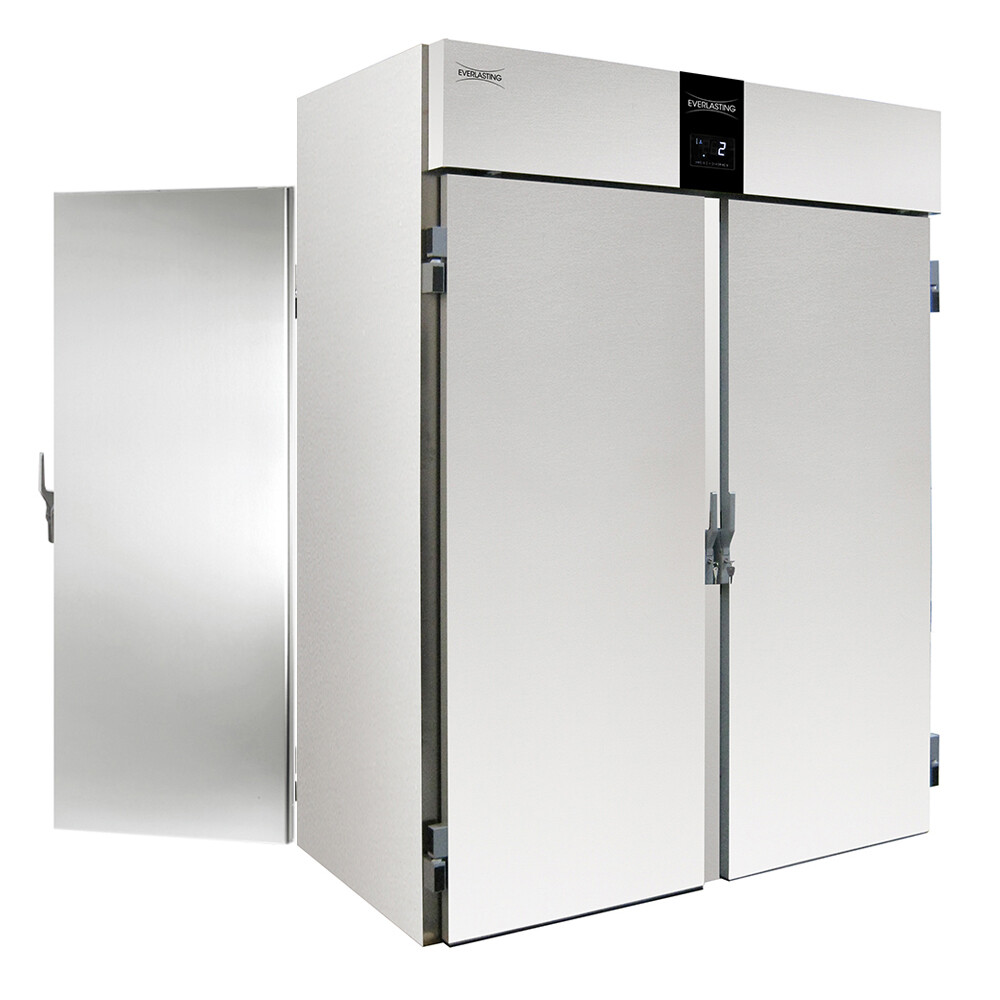

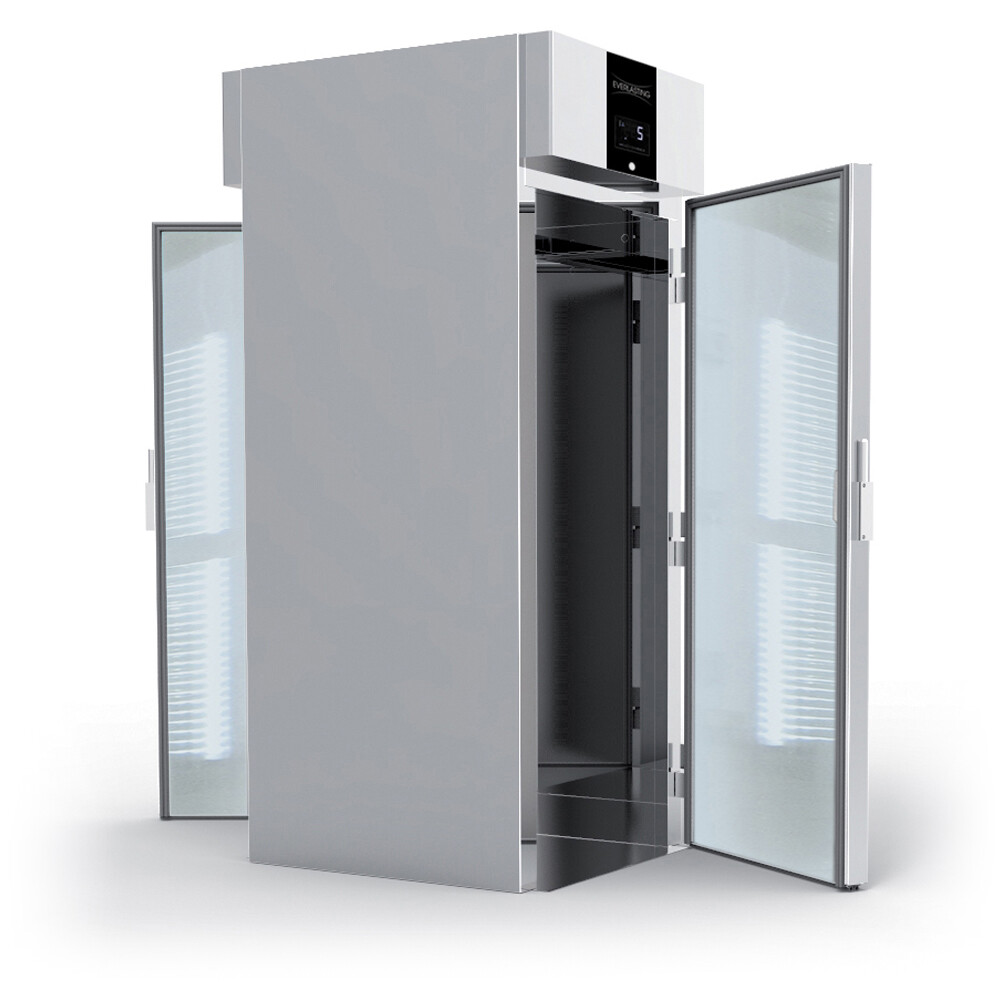

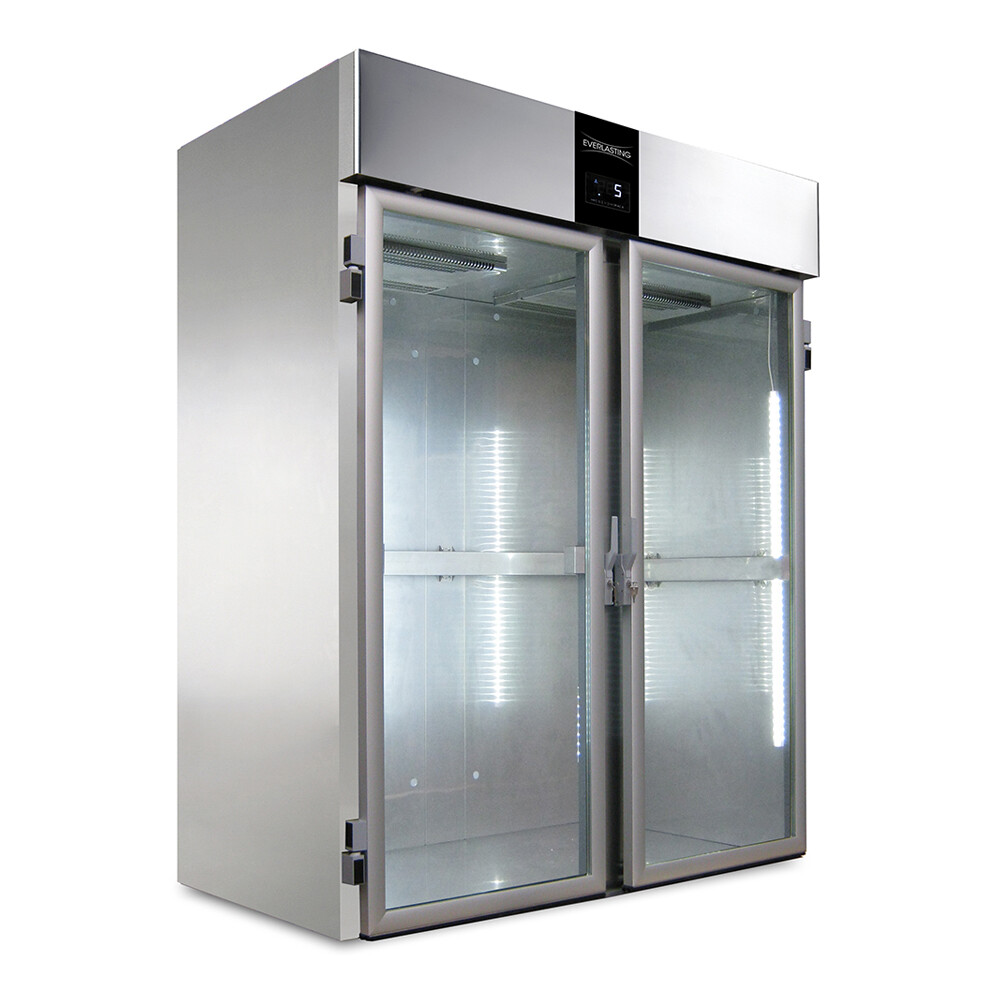

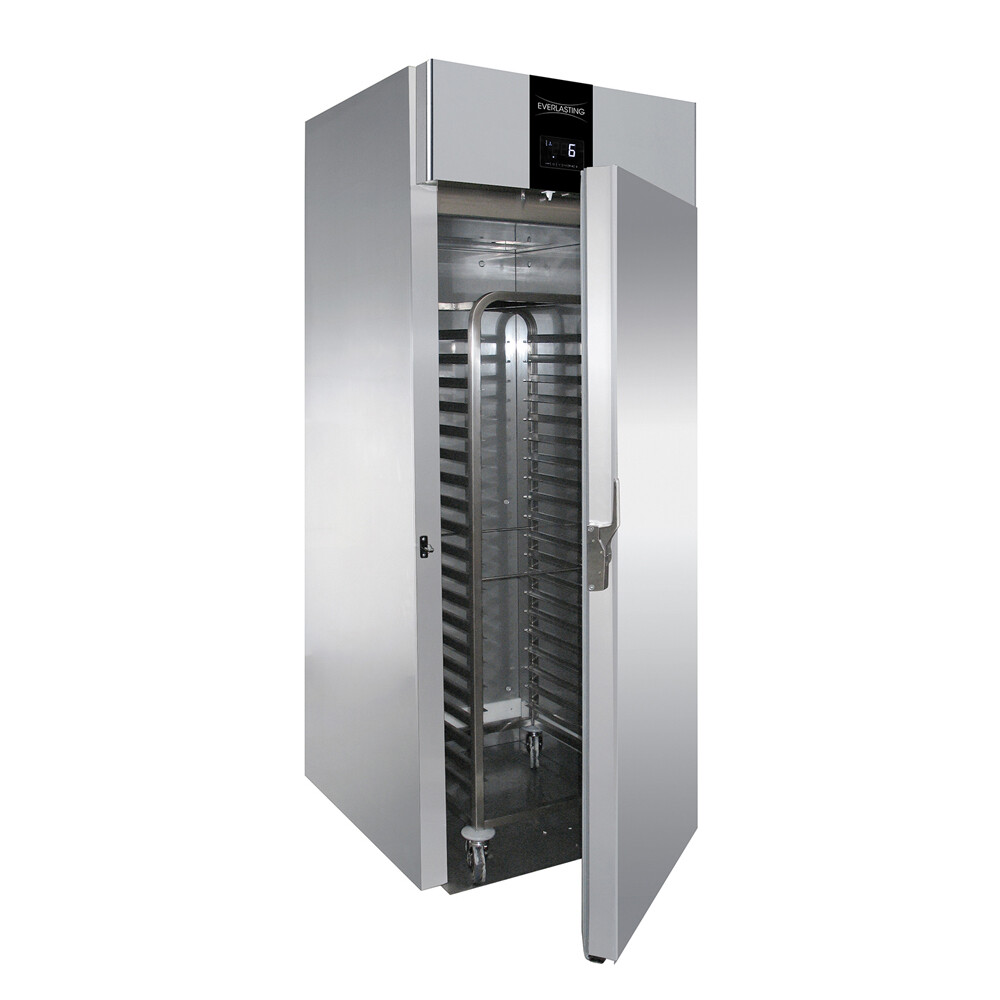

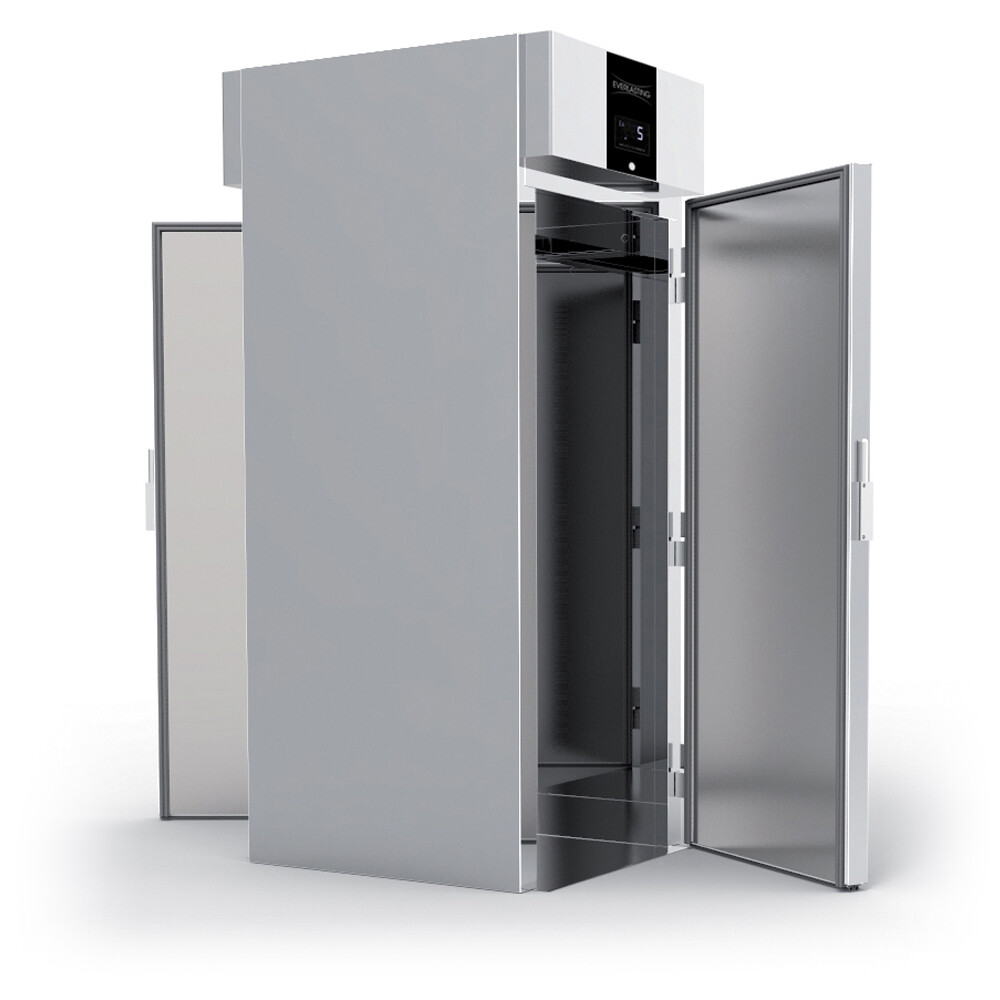

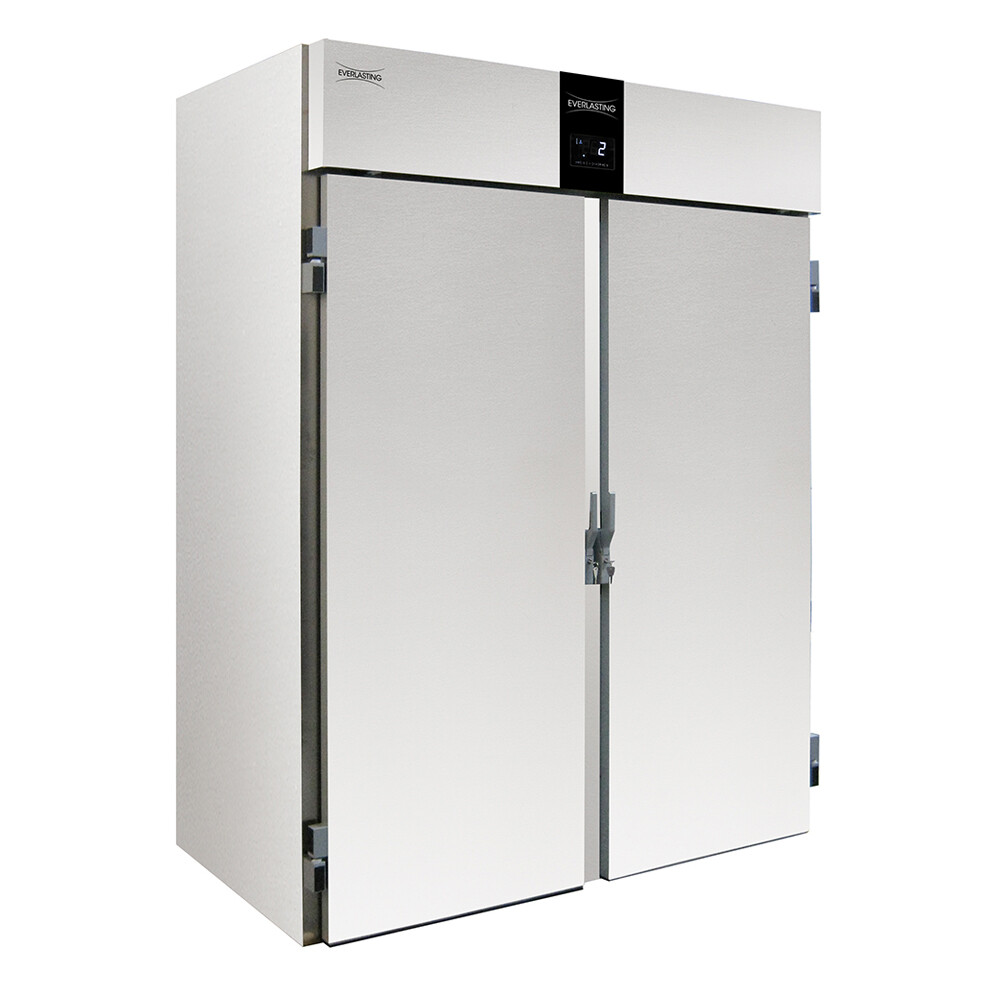

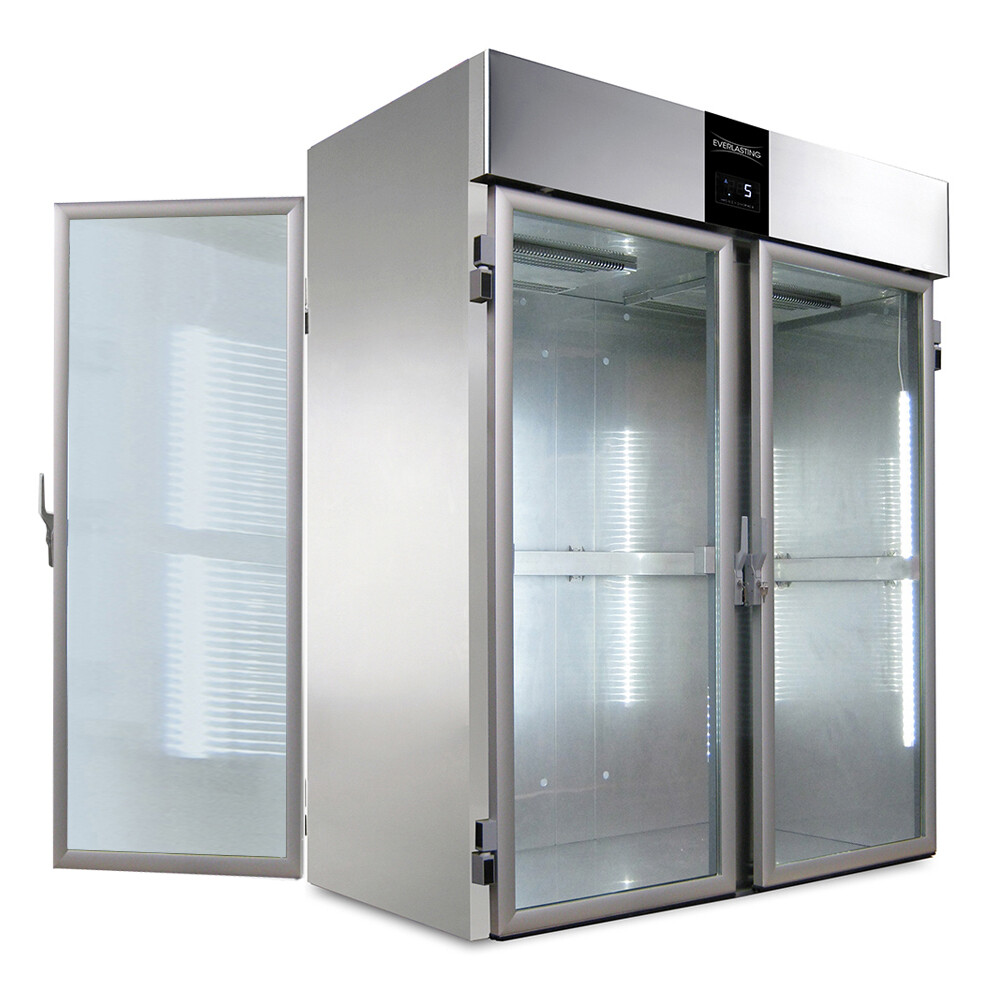

Roll-in / Roll-through

ROLL-IN and ROLL-THROUGH cabinets allow storing and handling a large quantity of product, thanks to the possibility to directly insert the Gastronorm trolleys. Single and double door versions available, as well as the pass-through option, with loading door at the front and unloading door at the back.

These cabinets are the ideal solution for large kitchens (hotels, catering services, etc.) or communities (canteens, hospitals, etc.)

The Roll-in / Roll-through range

Features

Stainless steel AISI 304.

Technical compartment, external back, external base in hot-dip galvanized metal sheet
Tropicalized monoblock unit
Gas R452A / R290 Green
Automatic defrost with electrical heater (Gas R452A)

Hot gas automatic defrost (Gas R290 Green)
Evaporator with anticorrosive treatment
80 mm insulation thickness with environmentfriendly high-density polyurethane
Internal 4-side Aisi 304 stainless steel bumpers
Aisi 304 noninsulated floor
Remote connection system via wi-fi

(Opt.)
Serial port RS-485

(Opt.)

Control panel

HACCP alarm log
Alarm management (temperature, power failure and dirty condenser)
WI-FI connection module for remote management (optional)
RS485 serial port for connection to supervision systems (optional)
Energy Saving function
Overcooling function
High and low humidity setting

Advantages

High efficiency and low energy consumption thanks to high-density polyurethane insulation thickness and to R290 refrigerating Gas (Green version).
Great usage flexibility thanks to the high loading capacity of trolleys.
Monoblock refrigerating unit easy to service and clean.
High internal capacity thanks to the external evaporator compartment.
